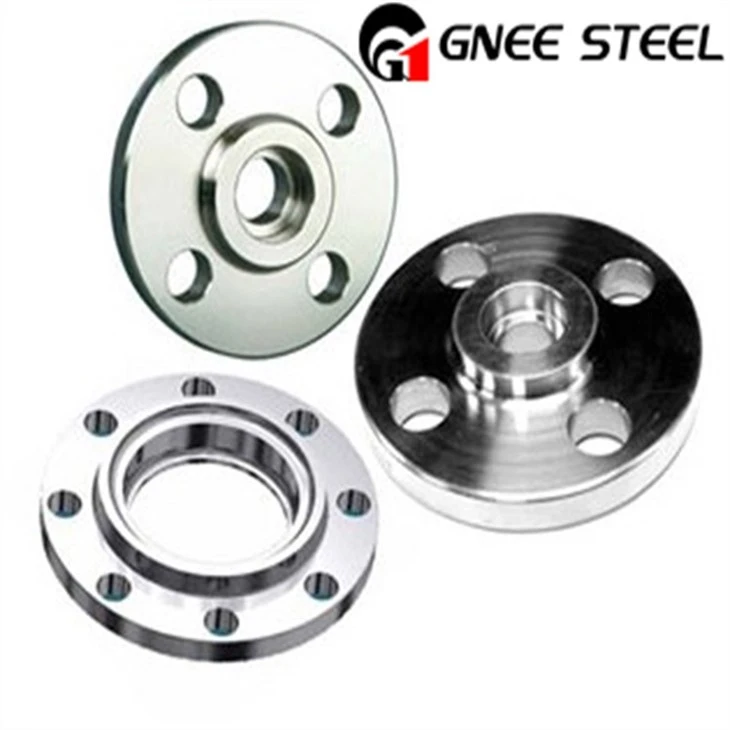

ASTM A182 F55 Super Duplex Flange
GNEE is a well-known supplier, manufacturer and exporter of Super Duplex Flange manufactured from premium quality raw materials. We follow a long-standing procedure for Duplex Steel A182 F55 Flange quality control, according to which we carefully evaluate all our products on the basis of quality parameters.
ASTM A182 F55 stainless steel flanges are high-strength and feature tungsten to provide greater stability to the material. The composition of ASTM A182 F55 duplex flange contains carbon, manganese, phosphorus, sulfur, silicon, nitrogen, and tungsten. The chromium content is 24%, the nickel content is 4.5%, and the molybdenum content is 3%, so it has good fatigue strength, and Excellent resistance to stress corrosion cracking, crevices, pitting, erosion and general corrosion in harsh environments.
Adding nitrogen to the alloy of ASTM A182 F55 super duplex flange will cause the structure to harden, thereby increasing its yield strength. It can be used in pressure and corrosive environments such as ships, sewage treatment, chemical processing, etc.
Take ActionContact Us: sales@gneetube.com
ASTM A182 F55 Industrial Flange Product information
ASTM A182 F55 stainless steel forged flange Production Range
| Specification | ASTM A182 / ASME SA182 F55 |
| UNS Grade | UNS S31803, S32205, S2205, S32550, S32750, S32760. |
| Standard | ANSI Flanges, ASME Flanges, BS Flanges, DIN Flanges, EN Flanges, etc. |
| Size | ½" to 24″ |
| Dimensions | ANSI/ASME B16.5, B 16.47 Series A & B, B16.48, BS4504, BS 10, EN-1092, DIN, etc. |
| Class / Pressure | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 etc. |
ASTM A182 F55 blind flange Chemical Composition %
| Chemical Composition Limits | ||||||||||
| Weight% | C | Mn | P | S | Si | Cr | Ni | Mo | N | W |
| Super Duplex F55 | 0.03 max | 1.00 max | 0.03 max | 0.01 max | 1 max | 24-26 | 4.5-6.5 | 3-4 | 0.25 | 0.08-0.20 |
ASTM A182 F55 slip flange Mechanical Properties
| Alloy | Tensile Strength N/mm² | Yield Strength 0.2% N/mm² | Elongation | Hardness HB |
| Super Duplex F55 | 860 | 720 min | 16 min | 270 max |
A182 F55 weld neck flange
Why choose us
GNEE has 14 steel production lines and 10 processing equipments for machining, bending, painting, heat treatment, cutting, drilling, bevelling, tempering and surface treatment. We have complete testing equipment and strong technical force. The annual production capacity is more than 60,000 tonnes including all kinds of double-sided stainless steel flanges.
GneeGroup participated in the exhibition
FAQ
1. How do we ensure quality?
There are always pre-production samples before mass production;
Always perform final inspection before shipment.
2. What can you buy from us?
Threaded flange, socket weld flange, slide-in flange, lap flange, weld neck flange, blind flange
3. Why should you buy from us instead of other suppliers?
The factory covers an area of nearly 60,000 square meters and has processing equipment such as large shears, circular shears, straighteners, annealing furnaces, and punching and shearing lines.
Hot Tags: astm a182 f55 super duplex flange, China astm a182 f55 super duplex flange manufacturers, suppliers, factory, emergency pipe fittings, permanent pipe fittings, stationary pipe fittings, temporary pipe fittings
