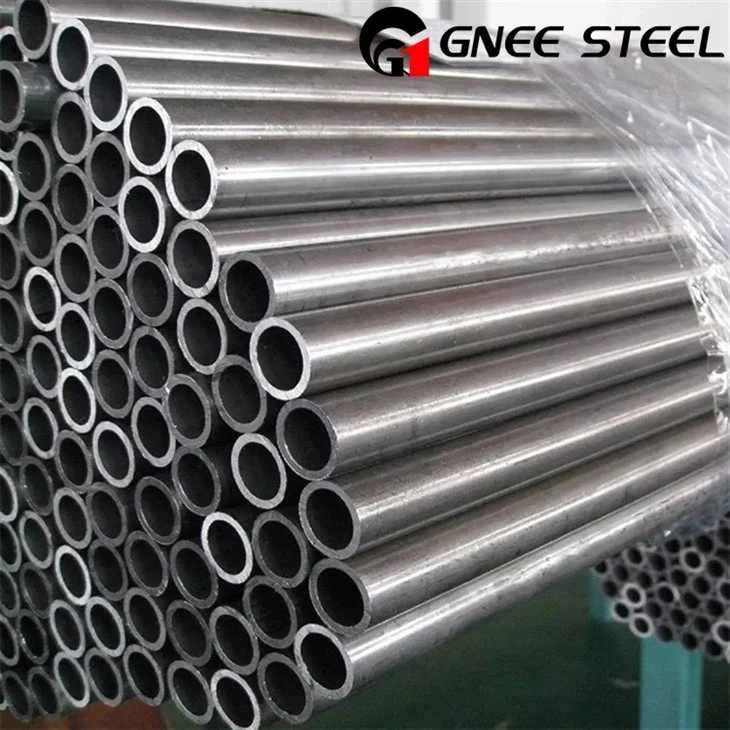

DIN 1629 Seamless Steel Pipe
These DIN 1629 seamless pipes are designed as per international and national standards and are available in customized length sizes and shapes for our esteemed clients. GNEE also offers the same at the best prices in the market.
DIN 1629 Carbon Seamless Steel Pipes are round tubes made of non-alloy material and are available in three main grades, namely DIN 1629 ST 37.0, 44.0 and 52.0 which are all low carbon steels. Among them, ST52.0 grade contains silicon and manganese while other grades do not.
DIN 1629 structural steel pipes have the advantages of easy welding and forming, price advantage and hardness can be improved by heat treatment. Hence DIN 1629 seamless steel pipes are mainly used in the construction of chemical plants, ships, pipeline engineering and general mechanical engineering purposes.
Take ActionContact Us: sales@gneetube.com
DIN 1629 Structural Pipes Product specification
DIN 1629 Seamless Pipe Specification Chart
| Standard | DIN 1629 |
| Grade | ST52 |
| Size in MM | 4 To 190 x Wall Thickness 0.5 To 15 |
| Outer Dimensions in MM | 4 To 60 |
| Wall Thickness in MM | 0.5 To 8 |
|
Schedule |
Schedule XS, Schedule 160, Schedule 40, Schedule XXS, Schedule 80 Supplier and Manufacturer |
|---|---|
| Length in MM | 6000 |
| Pipe Marking | All Pipe are marked as follows: Supplier or Manufacturer's Name, Standard, Grade, OD, Thickness, Length, Heat Number |
DIN 1629 Carbon Steel Tube Chemical Properties
| Symbol | Material Number | C | P | S | N¹) |
|---|---|---|---|---|---|
| St37.0 | 1.0254 | 0.17 | 0.040 | 0.040 | 0.009²) |
| St44.0 | 1.0255 | 0.21 | 0.040 | 0.040 | 0.009²) |
| St52.0³) | 1.0421 | 0.22 | 0.040 | 0.035 | - |
DIN 1629 Pipe Mechanical Composition
| Steel Grade | Upper Yield Stress ReH for wall thickness, in mm, |
Tensile strength Rm N/mm² |
Elongation(%) A5 | ||||
|---|---|---|---|---|---|---|---|
| Symbol | Material Number | up to 16 | over 16 up to 40 | over 40 up to 65 | Longitudinal | Transverse | |
| St 37.0 | 1.0254 | 235 | 225 | 216 | 350²) to 480 | 25 | 23 |
| St 44.0 | 1.0256 | 275¹) | 265¹) | 255¹) | 420²) to 550 | 21 | 19 |
| St 52.0 | 1.0421 | 355 | 345 | 335 | 500²) to 650 | 21 | 1 |
Tuberia DIN 1629 Temperature Range
| Steel Grade | Yield stress value by working temperature(Thickness increasing) | |||
|---|---|---|---|---|
| 50℃ | 200℃ | 250℃ | 300℃ | |
| St 37 | 235-215 | 185-170 | 165-150 | 140-130 |
| St 44 | 275-255 | 215-200 | 195-180 | 165-155 |
| St 52 | 355-335 | 248-230 | 225-210 | 195-185 |
DIN 1629 Seamless Carbon Steel Pipe Length
| Component length (mm) | Outer Diameter 30 To 100 mm | Outer Diameter 100 To 254 mm |
| 10-100 | + 1.0/- 0 | + 2.0/- 0 |
| 600-1200 | + 3.0/- 0 | + 4.0/- 0 |
| 100-600 | + 2.0/- 0 | + 3.0/- 0 |
| 1200-5000 | + 5.0/- 0 | + 6.0/- 0 |
DIN 1629 Carbon Steel Structural Pipes
Why choose us
Gnee has 14 steel production lines, 10 processing equipment for processing, bending, painting, heat treatment, cutting, drilling, beveling, tempering, surface treatment, complete testing equipment and strong technical force. The annual production capacity is more than 60,000 tons.
Gnee Factory environment
FAQ
1.Q.What's your advantage?
A.Honest business with competitive price and professional service on export process.
2.Q.Can your products be customized?
A.Yes, we can produce and process according to your requirements.
3.Q. Do you have a quality control system?
A.Yes, we have our own quality control laboratory.
