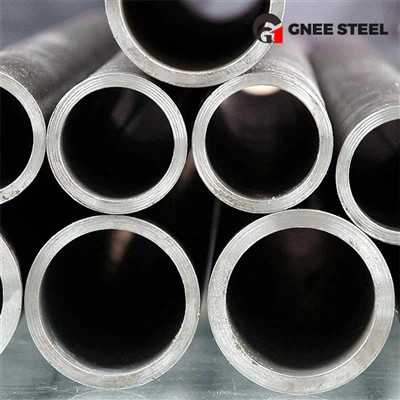

EN10210 S355NLH Carbon Steel Pipe
GNEE is a manufacturer, supplier and exporter of EN10210 S355NLH Carbon Steel Pipes and Tubes made from high quality raw materials. GNEE products are designed as per major international standards and sold in many countries around the world.
EN10210 S355NLH Carbon Steel Seamless Pipe contains 0.23% carbon, silicon, manganese, phosphorus and sulfur. This elemental composition allows it to withstand high temperatures in corrosive environments, while the low carbon content improves the weldability of EN10210 S355NLH Low Carbon Steel Pipes, allowing it to be easily installed and used without preheating or post weld heat treatment.
EN10210 S355NLH High Temperature Pipes are reliable and durable at a competitive price and can withstand harsh environments, so they are widely used in bridges, building frame structures, natural gas and oil transportation.
Take ActionContact Us: sales@gneetube.com
EN10210 S355NLH seamless pipe Product specification
EN 10210 S355NLH Hot Finished Tube Specification And Material
| Type | Seamless/ Welded / ERW |
| Grade | S355NLH |
| Length | 6000-14000 mm |
| Dimensional Tolerances | Thickness : (All sizes +/- 10%) |
| Standard | BS EN 10210 |
| Surface Protection | Black (Self Coloured uncoated), Varnish/Oil Coating, Pre-Galvanized, Hot Dip Galvanized |
| Dimension Range | 21.3-914mm |
| Wall Thickness | 0.5mm - 25mm |
| Condition | BKS, NBK,BK ,BKW, GBK(+A), NBK(+N), BK(+C) |
| End | Plain / Beveled / Vanished / Plastic Caps |
| Inspection | SGS, BV Etc. |
EN10210 S355NLH corrosion resistant pipe Chemical Properties
| Carbon | Silicon | Manganese | Phosphorous | Sulphur | Molybdenum | Nickel | Chromium | Copper | Others |
|---|---|---|---|---|---|---|---|---|---|
| max 0.18 | max 0.50 | 0.90-1.65 | 0.03 | 0.025 | max 0.10 | max 0.50 | max 0.30 | max 0.35 | V max 0.05 Al min 0.020 Nb max 0.05 Ti max 0.03 |
EN10210 S355NLH high pressure pipe Mechanical Properties
| Yield Strength | Tensile Strength | Elongation A5 min | |||
|---|---|---|---|---|---|
| MPa min | ksi min | MPa min | MPa min | ksi min | Percentage |
| 470 | 630 | – | 22 | ||
EN10210 S355NLH thick wall steel pipe Equivalent Designation
| DIN | EN | BS | NFA | ASTM | ASME |
|---|---|---|---|---|---|
| DIN -17124 Grade FGS 36 T | EN 10210-1 Grade S355NLH | NFA A 36-2011) Grade E 355 FP 2 | ASTM A633 Grade D | ASME SA633 Grade D | – |
EN10210 S355NLH high temperature seamless pipe
Why choose us
Gnee has 14 steel production lines, 10 processing equipment for processing, bending, painting, heat treatment, cutting, drilling, beveling, tempering, surface treatment, complete testing equipment and strong technical force. The annual production capacity is more than 60,000 tons.
Gnee Factory environment
FAQ
1.Q.What's your advantage?
A.Honest business with competitive price and professional service on export process.
2.Q.Can your products be customized?
A.Yes, we can produce and process according to your requirements.
3.Q. Do you have a quality control system?
A.Yes, we have our own quality control laboratory.
