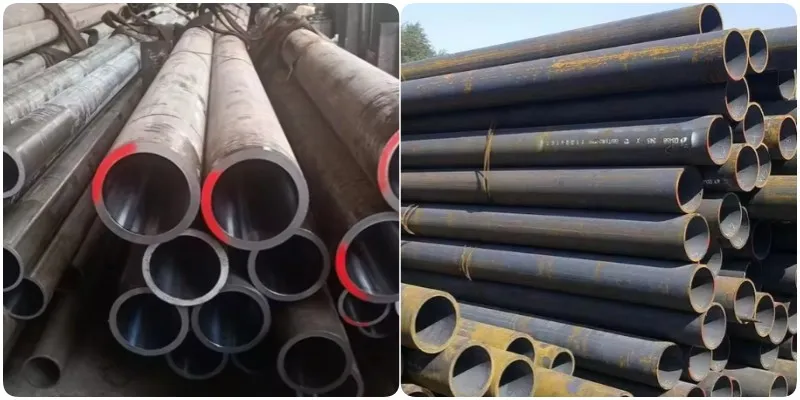

A178 Carbon Steel Boiler Tube
GNEE is a manufacturer, supplier and exporter of A178 electric resistance welded pipes and tubes made from high quality raw materials. GNEE products are designed as per major international standards and sold in many countries around the world.
A178 carbon steel boiler tubes contain carbon, manganese, phosphorus, sulfur and silicon with elongation between 30% and 35%. In addition, A178 welded high temperature tubes have superb heat resistance. Therefore, it is used in many high temperature and pressure piping.
ASTM A178 pipes and tubes are used for boiler tubes, boiler flues, superheater flues and safety ends. Steel Grade A (mild carbon steel), Grade C (medium carbon steel) or Grade D (carbon manganese steel). The manufacturing process must include heat treatment, cooling and welding.
Take ActionContact Us: sales@gneetube.com
SA178 A / ASTM A178 ondenser Steel Pipe Specifications
| SA178 A / ASTM A178 Chemical Composition |
|
|---|---|
| Carbon: 0.06% - 0.18% | Silicon: N/A |
| Manganese: 0.27% - 0.63% | Nickle: N/A |
| Phosphorus Max: 0.035% | Chromium: N/A |
| Sulfur Max: 0.035% | Molybdenum: N/A |
| SA178 A / ASTM A178 Mechanical Properties |
|
|---|---|
| Tensile Strength: | ksi: 47 MPa: 325 |
| Yield: | ksi: 26 MPa: 180 |
| Maximum Hardness: | 77 Max. Rockwell B (HRB) |
High pressure heat resistant alloy pipe
Advantages of GNEE
Gnee has 14 steel production lines, 10 processing equipment for processing, bending, painting, heat treatment, cutting, drilling, beveling, tempering, surface treatment, complete testing equipment and strong technical force. The annual production capacity is more than 60,000 tons.
GneeGroup participated in the exhibition
FAQ
1.One-Stop Solution
We have thousands of total production experience, from raw materials to finished products.
2.Competitive Price
Large scale purchase, standardized production process and efficient management make our price competitive.
3.Quick Shipping
Years of export experience enable us to control the transportation time more accurately.
4.Quality Control
The standardized production process, comprehensive management system, professional testing equipment Special material customization.
Hot Tags: a178 carbon steel boiler tube, China a178 carbon steel boiler tube manufacturers, suppliers, factory, Coated Steel Pipe, welded pipe for distillation, Military Pipe, ASTM A192 Boiler Tubes, Galvanized Carbon Steel Pipe, Alloy 20 Pipe
