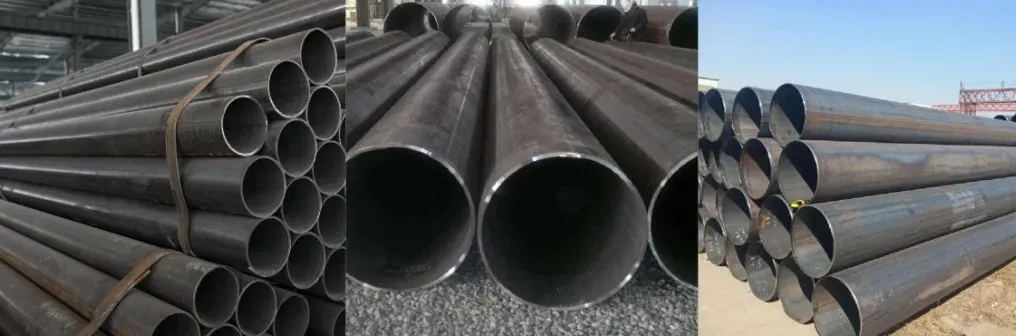

ERW L235 Steel Pipe
What is an ERW tube?
Electric resistance welded (ERW) pipe is made from steel coil and the weld seam runs parallel to the pipe. The width of the coil is the same as the circumference of the pipe so diameters are limited to 24 inches.
What is the composition of L235?
EN 10224 Grade L235 Carbon Steel Seamless Tubes are made up of low carbon steel with 0.17% carbon content in the composition along with 0.12% manganese.
The connection method of L235 straight seam steel pipe usually adopts welding, threaded connection or flange connection. Among them, welded connections have high strength and sealing properties, and are suitable for occasions with high connection requirements; threaded connections are easy to install and disassemble, and are suitable for temporary or frequent replacement occasions; flange connections Suitable for occasions requiring quick installation and disassembly.
L235 ERW pipe Chemical Properties
| Steel grade |
C % max |
Si % max |
Mn % max |
P % max |
S % max |
|
| Steel name | Steel number |
|||||
| L235 | 252 | 0,16 | 0,35 | 1,20 | 0,030 | 0,025 |
L235 welded pipes Mechanical properties room temperature
| Steel name | Tensile strength Rm MPa | Minimum yield strength Re a MPa for thicknesses in mm | Minimum elongation A % (Lo = 5,65 So) | Diameter of mandrel for the weld bend test | For the drift expanding testc % increase in d/D d ratio | |||
| T ≤ 16 | T > 16 | l b | t b | ≤0.8 | > 0,8 | |||
| L235 | 360 to 500 | 235 | 225 | 25 | 23 | 3T | 10 | 12 |
Straight seam resistance welded pipe
| L235 ERW Pipe Length | SRL, DRL, Random length from 3m to 12m |
| Straightness | 0,20 % of total length and 3 mm over any 1 m length |
| L235 ERW Pipe Standard | EN10224, EN10219, EN10210, EN 10217 etc. |
| Steel Grade | L235, L275, L355 or other equivalent steel grade |
| L235 ERW Pipe Test | UT test, Tensile test, yield test, Flatten test, Impact test etc |
Why choose us
1.The company has a rapid response to face a variety of situations
2.Guarantee the quality and reasonable price of the products
3.We have sufficient stock and quick delivery.
4.Flexible payment terms

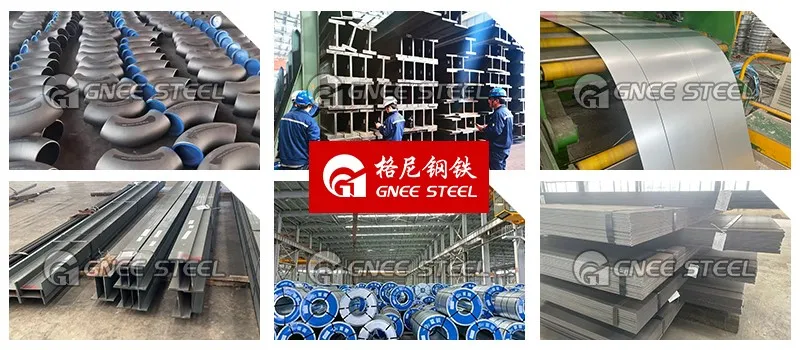

Gnee Factory environment
