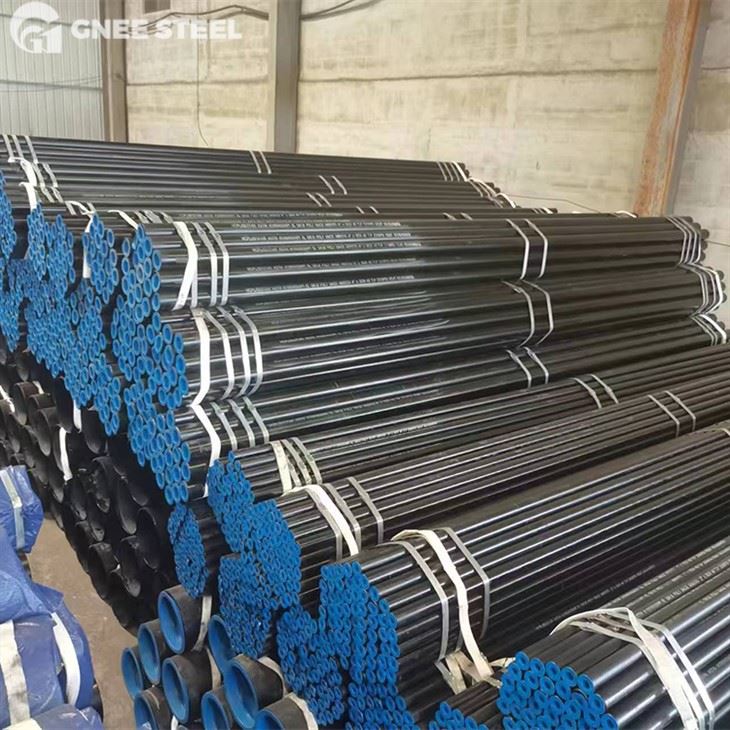

API 5L X65 Seamless Pipe For Natural Gas
X65 is a high-strength line pipe steel grade classified under the API 5L standard, featuring a minimum yield strength of 448 MPa.
X65 seamless steel pipes are primarily manufactured using a hot-rolling process, which encompasses key stages such as steelmaking, continuous casting, piercing, pipe rolling, and sizing. Specifically, the steelmaking phase employs a three-step process-"converter smelting + LF refining + RH vacuum treatment"-to ensure that the purity of the molten steel meets rigorous standards of P ≤ 0.015% and S ≤ 0.003%.
During the hot-rolling process, the application of advanced TMCP (Thermo-Mechanical Control Process) enables the steel to develop a fine acicular ferrite microstructure under controlled rolling and cooling conditions; this is the critical factor for achieving high strength and high toughness.
Why choose seamless? Eliminate weld seam risks in high-pressure gas mains. Our X65 SMLS pipes offer superior structural integrity and higher pressure ratings.
API 5L X65 PSL1 vs. PSL2: Critical for Gas Safety
| Feature | X65 PSL1 | X65 PSL2 |
| Yield Strength Range | Min 450 MPa | 450 - 600 MPa (Controlled Range) |
| Fracture Toughness | Not Mandatory | Mandatory (Charpy V-Notch Test) |
| Weldability | Standard | Strict Carbon Equivalent (CEq) Limits |
| Traceability | Basic | Full Heat-to-Pipe Traceability |
Technical Specifications: Chemical & Mechanical Properties
Mechanical Properties of X65 (L415)
Yield Strength (Min): 450 MPa (65,300 psi)
Tensile Strength (Min): 535 MPa (77,600 psi)
Elongation: Optimized for high ductility.
Chemical Composition Table for API 5L X65 (L450) Seamless Pipe
| Element (Elements) | PSL1 Specification (Max %) | PSL2 Specification (Max %) | Expert Insight (Role & Analysis) |
| Carbon (C) | 0.26 | 0.22 | Lower carbon in PSL2 significantly improves field weldability. |
| Manganese (Mn) | 1.45 | 1.45 | Primary strengthening element; improves strength and toughness. |
| Silicon (Si) | 0.45 | 0.45 | Acts as a deoxidizer to improve steel uniformity. |
| Phosphorus (P) | 0.030 | 0.025 | Reduces impurities and minimizes low-temperature brittleness. |
| Sulfur (S) | 0.030 | 0.015 | Ultra-low sulfur prevents laminar tearing in high-pressure pipes. |
| Niobium (Nb) | See Note | See Note | Micro-alloying element; refines grain size and boosts yield strength. |
| Vanadium (V) | See Note | See Note | Increases hardness and abrasion resistance. |
| Titanium (Ti) | See Note | See Note | Prevents grain coarsening in the weld Heat Affected Zone (HAZ). |
Quality Control of API 5L X65 pipeline for oil and gas
- 100% Hydrostatic Testing: Ensuring no leaks at design pressures.
- Ultrasonic Testing (UT): Mandatory for seamless pipes to detect internal wall defects.
- Dimensional Tolerance: Strict control over Outside Diameter (OD) and Wall Thickness (WT) for seamless fit-up.
- Mill Test Certificate (MTC): Must be compliant with EN 10204 3.1 or 3.2.
Anti-corrosion Coating Comparison Table for API 5L X65 Seamless Pipe
| Coating Type | Common Standards | Structure | Key Advantages | Best Applications |
| 3LPE (3-Layer Polyethylene) | DIN 30670, ISO 21809-1 | FBE + Adhesive + Polyethylene (PE) | Best overall performance. Superior electrical insulation, moisture resistance, and extreme mechanical protection. | Long-distance buried natural gas trunk lines; acidic/alkaline soil environments. |
| FBE (Fusion Bonded Epoxy) | AWWA C213, CAN/CSA | Single-layer epoxy powder coating | Excellent adhesion; superior resistance to cathodic disbondment; good heat resistance. | Dry soil environments; Horizontal Directional Drilling (HDD); fittings and elbows. |
| 3LPP (3-Layer Polypropylene) | DIN 30678, ISO 21809-1 | FBE + Adhesive + Polypropylene (PP) | High-temperature resistance (up to 110°C); extremely high hardness and superior scratch resistance. | Subsea pipelines; high-temperature transport media; rocky backfill areas. |
| Internal Epoxy (Drag Reduction) | API RP 5L2 | Liquid epoxy resin internal lining | Improves flow efficiency. Significantly reduces internal wall roughness and gas friction; energy-saving and anti-corrosive. | Large-diameter natural gas transmission pipes. Usually used in combination with external 3LPE. |
| CWC (Concrete Weight Coating) | ISO 21809-5 | Concrete + Wire mesh reinforcement | Increases pipe density to counteract buoyancy; provides heavy-duty physical protection for the anti-corrosion layer. | Offshore/Subsea laying; marshlands; river crossing sections. |
| 2LPE / 2PP (2-Layer Structure) | Universal Standards | Adhesive + Polyethylene/Polypropylene | Lower cost than 3-layer structures; provides essential anti-corrosion protection. | Budget-restricted projects; low-corrosivity onshore projects. |
Integrated coating solutions for X65 seamless pipes. We provide 3LPE, FBE, and Internal Epoxy coatings to ensure a 50-year service life for your gas pipelines.
Packaging and shipping of API 5L X65 seamless carbon steel line pipe
Trusted supplier for major energy projects worldwide. Optimized logistics for fast delivery to Houston, Dubai, Singapore, and Perth. Request a landed price today.
FAQ
What is API 5L grade X65 material?
API 5L X65 PSL2 Pipe, API 5L X65 carbon steel or L450 X65 Pipe is an alloy of elements like manganese, phosphorus, sulphur and titanium. The API 5L X65 chemical composition of these pipes make it one of the most valued and versatile pipes ever.
What is the strength of X65 pipe?
450 MPA
API 5L X65 pipes have a high minimum tensile strength of 450 MPA. This makes them stronger than API 5L GR. X60 pipe. These pipes are very sturdy and can be worked for a long period making it cost-effective in long term and help in reducing lifetime replacement cost to clients.
