API5LX65Q line pipe is a seamless steel pipe used for gas, water and oil transportation in the petroleum and natural gas industries.
Its standards are API SPEC 5L (American Petroleum Institute standard) and GB/T9711 (Chinese national standard). The main materials of this line pipe are L245, L290, L360, L415, L480, GR.B, X42, X46, X56, X65, X70, X80, X100 and other steel grades.

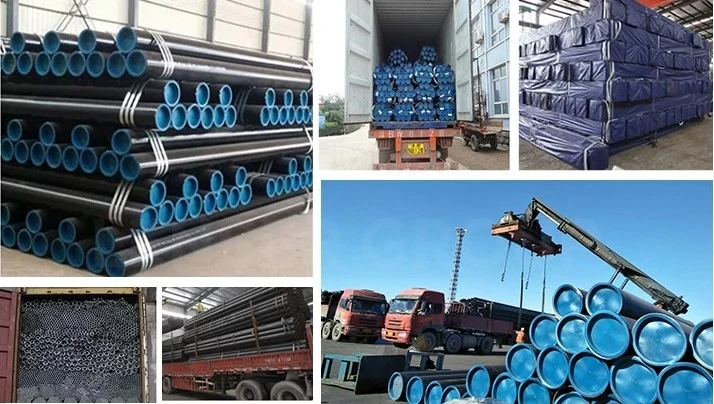

X65Q seamless steel pipe API5LX65Q line pipe
Product execution standard: APISPEC 5L line pipe specification PSL2.
Product specifications: outer diameter 21.3~1026mm, overall thickness: 2.0~120mm
The product should comply with the requirements of TSG D7002 pressure piping component type test rules.
Production method: hot rolling, cold drawing, hot expansion. Delivery status: heat treatment
Chemical composition of API5L Yield ratio ≤ 0.93. Hydrostatic pressure test:
The steel pipe shall be hydrostatically tested and shall have no leakage through the weld or pipe body,
The manufacturer should issue an inspection certificate complying with 5.1.B of GB/T18253-2000 or an inspection certificate complying with 3.1 of EN10204:2004. If the order contract stipulates another replacement method, the manufacturer shall issue an inspection certificate conforming to 5.1.A or 5.1.C of GBЛT18253-2000, or an inspection certificate conforming to 3.2 of EN10204:2004.
The following information shall be provided for each order lot when applicable:
Specified outer diameter, specified wall thickness, steel pipe grade, PSL, steel pipe type and delivery status;
Chemical composition (smelt analysis and product analysis) and carbon equivalent (product analysis and acceptance limits);
Tensile test results and specimen type, size, location and orientation;
CVN impact test results: specimen size, orientation and location: test temperature and acceptance limits applicable to specimens of specific sizes.
