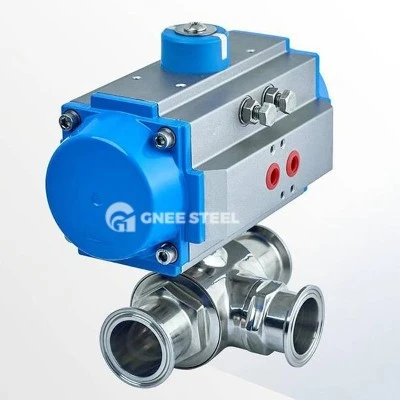

A pneumatic ball valve is a valve that combines a ball valve with a pneumatic actuator. The following is a detailed introduction to pneumatic ball valves:
1. Definition and Working Principle
Definition: A pneumatic ball valve uses compressed air to rotate a ball within the valve body, thereby opening or closing a pipeline. When the channel on the ball aligns with the valve body's inlet and outlet, the valve is open, allowing fluid to flow. When the ball rotates 90 degrees, the channel becomes perpendicular to the valve body's inlet and outlet, closing the valve and blocking the flow.
Working Principle: A pneumatic actuator consists of a cylinder, piston, valve, and control element, with the cylinder being the core component. The pneumatic actuator receives a control signal, converts the compressed air's energy into mechanical kinetic energy, and rotates the valve stem and the attached ball.
2. Functions of Pneumatic Ball Valves
- Controlling Media Flow:
Pneumatic ball valves can adjust media flow by adjusting the ball valve opening to meet varying production process requirements.
- Isolating Media Flow:
In emergencies, pneumatic ball valves can be used to quickly close the fluid channel to prevent personal injury or equipment damage from media leakage.
- Automated Control:
By integrating with automated equipment, pneumatic ball valves can be automatically controlled, improving production efficiency and reducing labor costs.
- Energy Saving and Cost Reduction:
Pneumatic ball valves offer fast response and low energy consumption, saving energy and reducing production costs.
