What Is the Strength of L360 Steel Pipe? Yield and Tensile Values

What L360 Steel Pipe Is

L360 is a line pipe grade defined in the API 5L specification for seamless and welded steel pipe used in pipeline transportation systems. The designation follows the API 5L practice of naming a grade after its specified minimum yield strength in megapascals: L360 therefore means a minimum yield strength of 360 MPa, which is the metric equivalent of the familiar grade X52 (52,000 psi).

The grade is produced in two product specification levels. PSL1 covers the basic strength and dimensional requirements, while PSL2 adds mandatory impact testing, tighter limits on chemistry, a maximum yield strength ceiling and additional non-destructive examination. Delivery conditions such as as-rolled, normalized, normalized plus tempered, quenched plus tempered and thermo-mechanically rolled are agreed at the ordering stage, and they influence both the achievable strength and the weldability of the finished pipe.

Strength Requirements of API 5L L360

The mechanical property requirements below are those specified in API 5L for grade L360 pipe body. Elongation is not a fixed number in the standard; it is calculated from the tensile test piece cross-sectional area, so the table states the duty rather than an invented figure.

Because PSL2 fixes both a floor and a ceiling on yield and tensile strength, the grade cannot be supplied simply by over-strengthening the steel. Producers must keep the finished pipe inside a window, which is normally achieved through micro-alloyed, low-carbon chemistry combined with controlled rolling or heat treatment.

How the Strength Is Verified

Tensile testing is carried out in accordance with ASTM A370 on test pieces taken from the pipe body, and for welded pipe also from the weld seam where the specification requires it. The width of the test piece and the position from which it is cut both affect the measured value, so the test report should always be read together with the test method stated on it.

Tensile test: determines yield strength, tensile strength and elongation for each test unit.

Impact test: for PSL2 pipe, Charpy V-notch testing at the specified test temperature is performed on the pipe body, with minimum absorbed energy and shear area criteria taken from the API 5L requirement tables.

Hardness and additional testing: when a line is intended for sour service, hardness limits and specific chemistry limits follow ISO 15156 requirements in addition to API 5L.

Hydrostatic test: every length is pressure tested to the level required by the specification to confirm structural integrity.

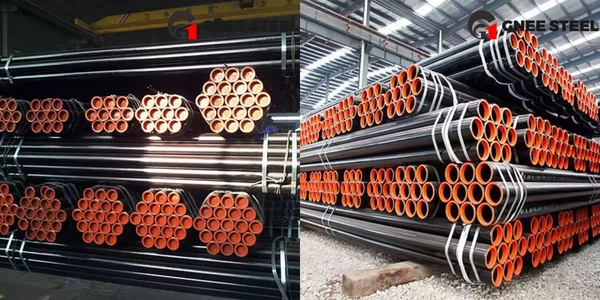

Applications of L360 Line Pipe

L360 sits in the middle of the strength range and is therefore used across a wide span of pipeline duties:

Oil and gas gathering and transmission lines operating at moderate to high pressure.

Water injection, brine and produced water lines where moderate strength and good weldability are both needed.

Low-temperature service lines, provided the impact test temperature is specified correctly for the design minimum temperature.

Structural and pressure-bearing components in chemical plants and power stations.

Selection and Welding Guidance

Grade selection should start from the design pressure, diameter and wall thickness rather than from the grade alone. Increasing wall thickness is often cheaper than moving to a higher grade, and it avoids the weldability penalties that come with higher strength steel. For L360, carbon content is normally held low and niobium, vanadium or titanium additions are used to reach the strength without impairing toughness.

Carbon equivalent matters more than strength during field welding. A low carbon equivalent allows girth welds to be made without preheating in many site conditions, but thick sections, high ambient humidity or low ambient temperature can still require preheat. Welding procedure qualification should always be carried out on the actual grade and wall thickness combination, with the procedure tested in accordance with the applicable pipeline welding standard before production welding begins.

Inspection Points That Are Often Missed

Three checks prevent most disputes on delivered L360 pipe. First, confirm on the mill certificate that the grade is stated together with the product specification level, because PSL1 and PSL2 are not interchangeable. Second, check that impact test temperature matches the design minimum temperature in the purchase order, not the ambient temperature at the mill. Third, verify that dimensional tolerances and the hydrostatic test pressure recorded on the certificate match the clause referenced in the order.

FAQ

Q: Does L360 mean the pipe has a yield strength of exactly 360 MPa?
No. It means the specified minimum yield strength is 360 MPa. Actual measured values are normally higher, and for PSL2 pipe they must also stay below the 510 MPa maximum.

Q: Is L360 the same as X52?
Yes, they describe the same strength level. X52 is the imperial designation in ksi and L360 is the metric designation in MPa within the API 5L grade system.

Q: What is the tensile strength of L360 pipe?
PSL1 requires a minimum tensile strength of 460 MPa. PSL2 requires a minimum of 460 MPa and a maximum of 760 MPa.

Q: Why does PSL2 pipe cost more than PSL1?
PSL2 adds mandatory impact testing, tighter chemical limits, a maximum yield strength limit and more non-destructive examination, all of which increase production and inspection effort.

Q: Can L360 pipe be used at low temperature?
It can, but the suitability depends on the Charpy impact test temperature and absorbed energy agreed in the order. The design minimum temperature must be stated so the correct test temperature can be applied.

Q: How is elongation determined for L360?
Elongation is calculated from a formula in API 5L that uses the cross-sectional area of the tensile test piece, so the required minimum varies with test piece size rather than being one fixed percentage.
