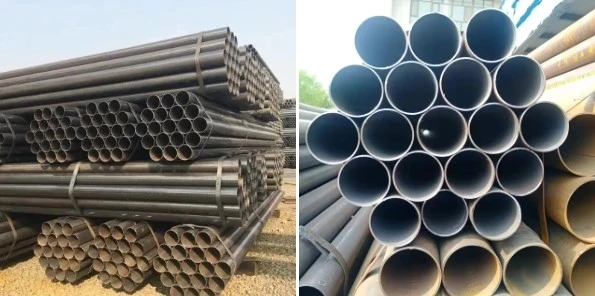

ASTM A252 Standard specification for welded steel pipe piles.
This specification covers nominal wall cylindrical steel pipe piles in which the steel barrel serves as a permanent load-bearing member or as an outer shell forming a cast-in-place concrete pile. Each welding pile shall be seamless welded, resistance welded, flash welded or fusion welded, and shall adopt longitudinal seam, spiral butt seam or spiral lap seam.
Application: Steel tubes as permanent load-bearing members or as casings forming cast-in-place concrete piles.
Size: 6" – 20"
| Specification | Description |
|---|---|
| Standard | ASTM A252 |
| Type | Welded Steel Pipe Piles |
| Material | Carbon Steel |
| Grades | Grade 1, Grade 2, Grade 3 |
| Pipe Dimensions | Range of diameters and wall thicknesses |
| Lengths | Range of lengths available |
| End Finish | Plain End, Beveled End |
| Coatings | Optional coatings for corrosion resistance |
| Applications | Bridge foundations, highway construction, building support, etc. |
Mechanical properties of astm a252 standard
|
Grade |
Grade 1 |
Grade 2 |
Grade 3 |
|
Tensile Strength, Min psi |
50,000 |
60,000 |
66,000 |
|
Yield Strength, Min psi |
30,000 |
35,000 |
45,000 |
