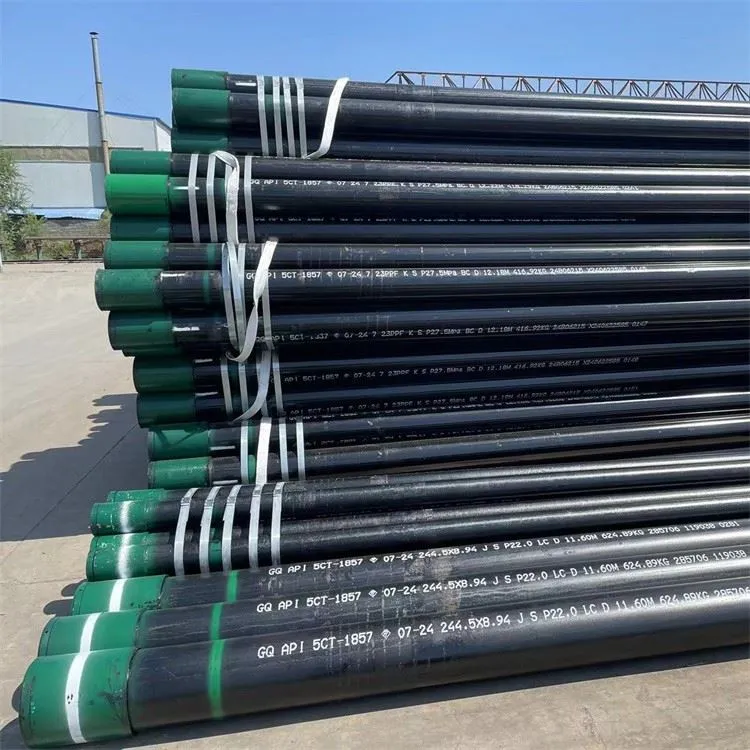

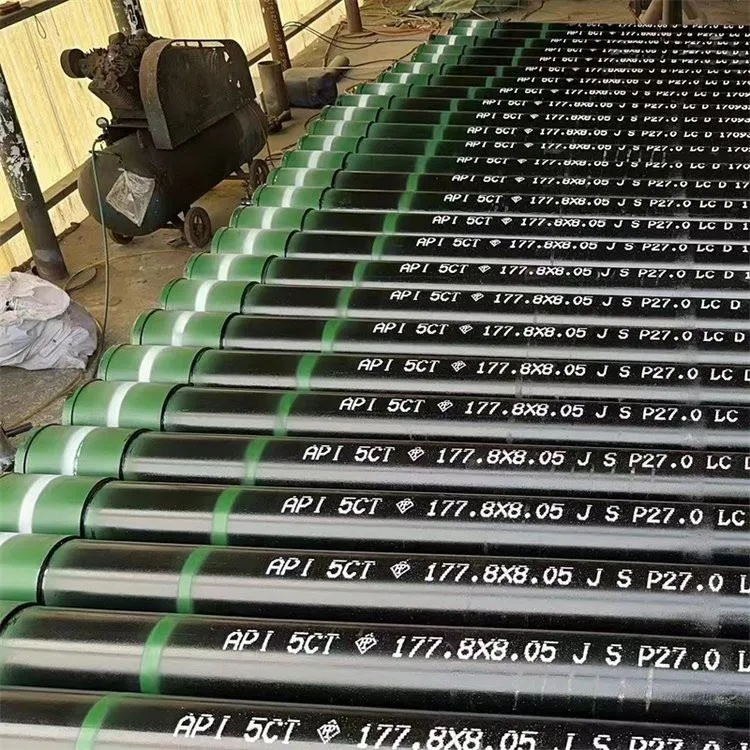

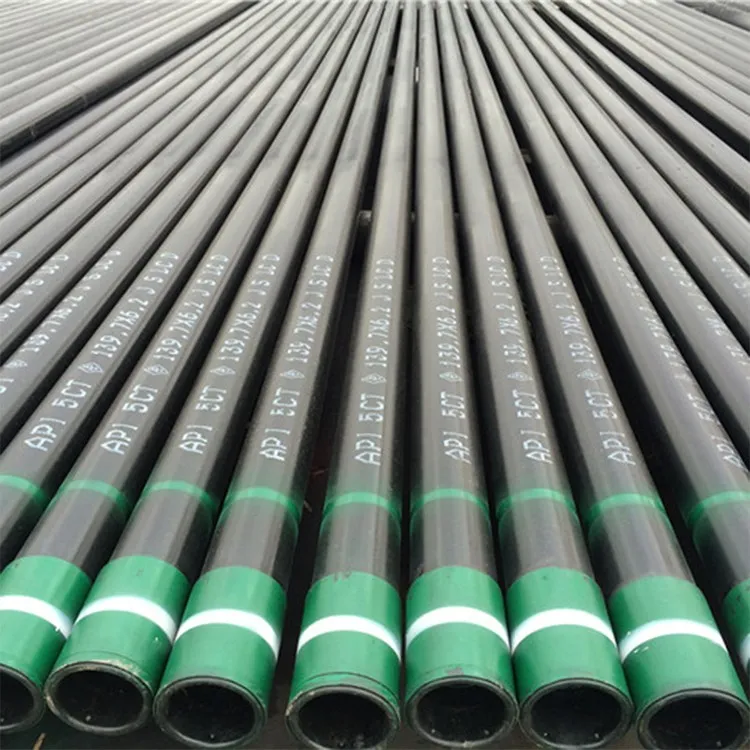

API 5CT P110 Casing And Tubing
What is API 5CT P110 Casing and Tubing?
API 5CT P110 is a high-grade oil country tubular good (OCTG). The "110" stands for its minimum yield strength of 110,000 psi.
Manufacturing: Usually produced through a Quenched and Tempered (Q+T) heat treatment process to achieve its high mechanical strength.
Application: It is specifically designed for deep wells with high-pressure and high-temperature (HPHT) conditions. It is the primary choice for wells where lower grades like J55, K55, or N80 cannot withstand the extreme collapse or tensile loads.
Note: P110 is a general high-strength grade; it is not inherently resistant to H2S (Sour Service). For sour environments, T95 or C110 is usually required.
Engineered for HPHT Challenges: GNEE's High-Strength P110 Casing Withstands Extreme Depth and Pressure. Secure Your Well Integrity Today!
API 5CT P110 Specification Table
| Property | Details |
| Standard | API Spec 5CT / ISO 11960 |
| Grade | P110 |
| Product Specification Level | PSL-1, PSL-2, PSL-3 |
| Manufacturing Process | Seamless (SMLS) or Electric Welded (EW) |
| Heat Treatment | Full-length Quenched & Tempered (Q+T) |
| Color Code | One White Band |
Chemical Composition and Mechanical Properties (P110)
| Chemical Composition (%) | Value (Max unless specified) |
| Carbon (C) | No specific limit (Controlled by process) |
| Manganese (Mn) | No specific limit |
| Phosphorus (P) | 0.030 |
| Sulfur (S) | 0.030 |
| Silicon (Si) | 0.45 |
| Mechanical Property | Value (Imperial - psi) | Value (Metric - MPa) |
| Yield Strength (Min-Max) | 110,000 – 140,000 | 758 – 965 |
| Tensile Strength (Min) | 125,000 | 862 |
| Hardness | Recorded and Reported | - |
Dimensions and Tolerances (P110)
| Item | Tolerance Range |
| Outside Diameter (OD) | < 4-1/2": ± 0.79mm / ≥ 4-1/2": +1.00% / -0.50% |
| Wall Thickness | -12.5% |
| Weight | +6.5% / -3.5% (Single length) |
| Straightness | < 0.2% of the total length |
P110 Connection Types, Ends, and Couplings
| Category | Types Available |
| Casing Connections | STC (Short Round), LTC (Long Round), BTC (Buttress), Premium Connections |
| Tubing Connections | EUE (External Upset), NUE (Non-Upset), Premium Connections |
| Pipe Ends | Threaded and Coupled (T&C), Plain End (PE) |
| Couplings | Must be the same grade (P110) as the pipe body |
Key Features of API 5CT P110
Extreme Strength: With a 110 ksi yield, it handles massive structural loads in ultra-deep wells.
High Collapse Resistance: Essential for protecting the wellbore from external geological pressure.
Excellent Ductility: Despite its high strength, the Q+T process ensures it retains enough toughness to avoid brittle failure.
Versatility: Compatible with high-torque BTC and Premium connections for horizontal and directional drilling.
Uniformity: Strict manufacturing standards ensure consistent wall thickness and metallurgical properties.
API 5CT P110 Reference Inspection
To ensure safety in high-stress environments, GNEE P110 pipes undergo rigorous inspections:
Visual Inspection: Checking for surface pits, cracks, and laminations.
Dimensional Check: Verifying OD, wall thickness, and length.
Drift Test: Passing a mandrel through the pipe to ensure internal clearance.
NDT (Non-Destructive Testing): Magnetic Particle Inspection (MPI), Ultrasonic Testing (UT), or Eddy Current.
Hydrostatic Test: 100% testing to verify leak-proof performance under high pressure.
Hardness Test: To ensure the Q+T process met the specified hardness uniformity.

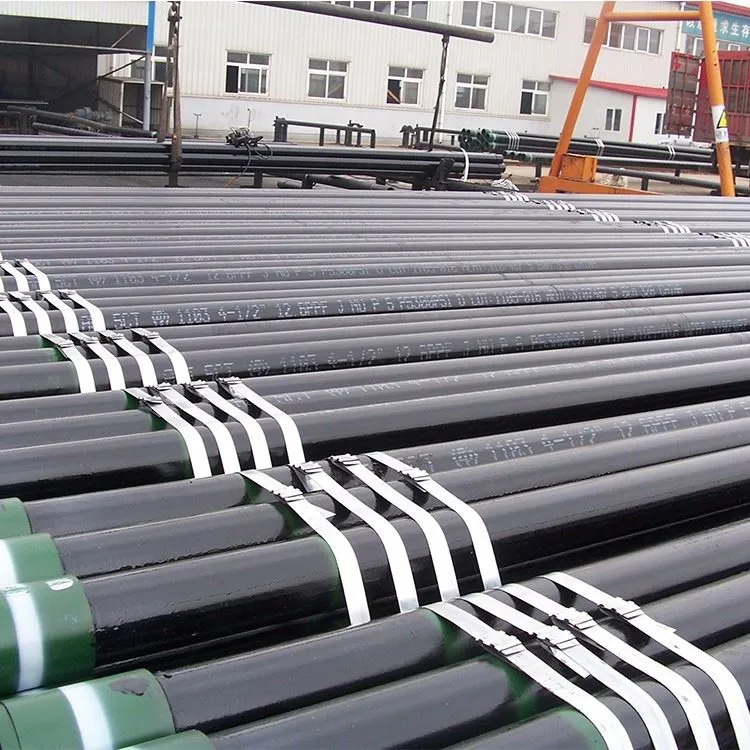

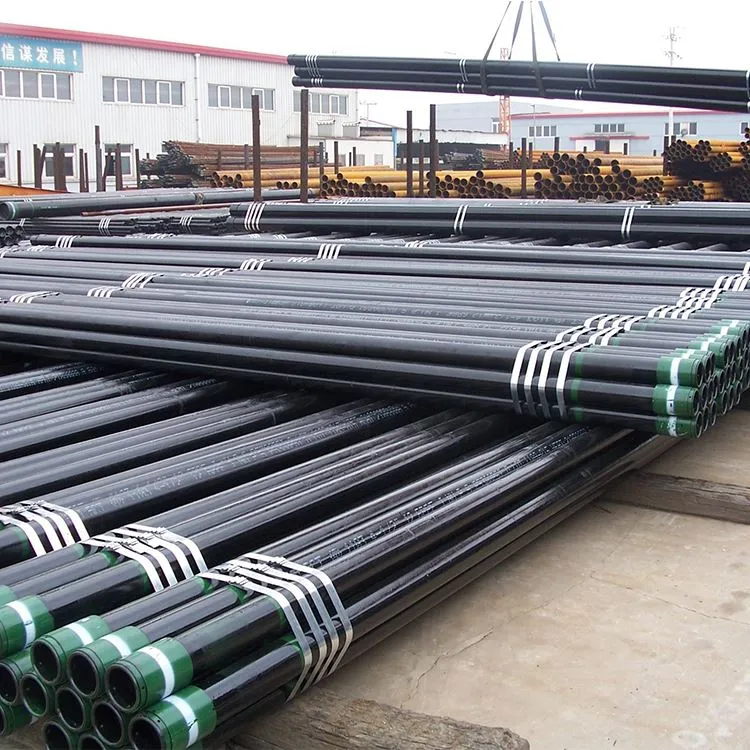

API 5CT P110 OCTG Factory
FAQ
What is the yield strength of P110?
The yield strength of API 5CT P110 is:
Minimum Yield Strength: 110,000 psi (758 MPa)
Maximum Yield Strength: 140,000 psi (965 MPa)
What grade is P110 casing?
P110 is a High-Strength, High-Grade steel casing under the API 5CT specification.
Grade Category: It belongs to Group 4 (the highest strength group in common API grades).
Strength Level: It is much stronger than common grades like J55, K55, N80, and L80.
Color Code: It is identified by one white band.
