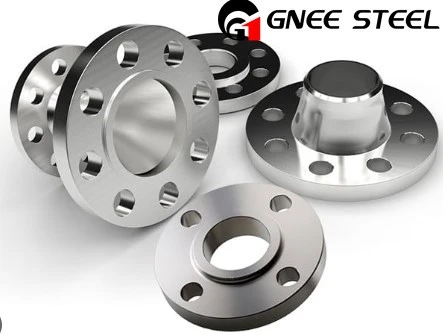

ASTM A182 F5 Alloy Steel Flange
GNEE manufacturers are using high-quality raw materials to produce Alloy Steel ASTM A182 F5 Alloy Steel Flange which is one of the popular and widely used products known for its high-end performance and durability.
A182 flange is a chromium-molybdenum alloy. A182 chromium-molybdenum alloy flange can increase the content of chromium and molybdenum. The added chromium helps improve the steel's hardenability and corrosion resistance, while the added molybdenum helps enhance its toughness and corrosion resistance.
When transporting high-temperature or corrosive media from one process to the next through chromium alloy pipes, a high-strength flange that can withstand the harsh environment is crucial, so A182 corrosion-resistant flange relies on its excellent performance in corrosion resistance and high creep. The strength, strong wear resistance and chromium alloy pipes are used to connect pipes, valves, pumps and other equipment to form piping systems used in oil and gas, refineries, power plants, and chemical processing industries.
Take ActionContact Us: sales@gneetube.com
Product information
ASTM A182 F5 Pipe Flanges Specification Format
| ASTM Specifications | ASTM A182 and ASME SA182 |
| Dimensions Chart | ANSI/ASME B16.5, BS4504, BS 10, B 16.47 Series A & B, B16.48, EN-1092, DIN, etc. |
| Standard Flanges | ANSI, ASME, BS, DIN, EN Flange, etc. |
| Size inch | 1/2 inch to 36 inch |
| Class / Pressure Rating | 150#, 300#, 600#, 900#, 1500#, 2500#, PN6, PN10, PN16, PN25, PN40, PN64 |
| Type of Flange Face | Flate, Raised Face, Ring Type Joint |
ASTM Alloy Steel F5 Flanges Chemical Properties
| Grade | C | Mn | Si | S | P | Cr | Mo |
| A182 F5 | 0.15 | 0.3 - 0.6 | 0.5 | 0.03 | 0.03 | 4 - 6 | 0.044 - 0.65 |
ASTM A182 F5 convex weld neck Flanges Mechanical Properties
| Grade | Tensile Strength (Mpa) | Yield Strength (Mpa) | Elongation % |
| A182 F5 | 275 | 485 | 20 |
A182 F5 Cl1 Forged Flanges Size In Inch
| Products | Size | |
| ASTM A182 F5 Slip-On Flange | F5 Threaded Flanges | Sizes 1/8 inch – 36 inch Raised or Flat Face |
| Alloy Steel Grades F5 Forged Flange | Low Alloy Steel F5 Orifice Flange | |
| ASTM A182 F5 Alloy Steel RTJ Flange | ASTM A182 Grade F5 Pipe Flange | |
| ASTM A182 Gr F5 Socket Weld Flange | ASTM A182 Grade F5 Weld Weld Flange | |
| ASTM A182 Grade F5 Plate Flange | ASTM A182 Gr F5 Blind Flange | |
| Grade F5 ASTM A182 Flange | ASTM A182 F5 Lap Joint Flange | |
ASTM A182 F5 welding flange
Why choose us
gnee has 14 steel production lines, 10 processing equipment for processing, bending, painting, heat treatment, cutting, drilling, beveling, tempering, surface treatment, complete testing equipment and strong technical force. The annual production capacity is more than 60,000 tons.
Gnee Customer visit
FAQ
1.Q.What's your advantage?
A.Honest business with competitive price and professional service on export process.
2.Q.Can your products be customized?
A.Yes, we can produce and process according to your requirements.
3.Q. Do you have a quality control system?
A.Yes, we have our own quality control laboratory.
Hot Tags: astm a182 f5 alloy steel flange, China astm a182 f5 alloy steel flange manufacturers, suppliers, factory, emergency pipe fittings, permanent pipe fittings, stationary pipe fittings, temporary pipe fittings
