ASTM A423 Grade 1 Low-Alloy Steel Tubes

What is A423 pipe?
ASTM A423 Grade 1 Steel Tubes covers minimum-wall-thickness, seamless and electric-resistance welded, low-alloy steel tubes for pressure containing parts such as economizers or other applications where corrosion resistance is important.

A423 GR1 alloy steel pipe is a seamless and welded corrosion-resistant alloy steel pipe. Its chemical elemental composition typically contains approximately 0.19% carbon, 0.8% manganese, 0.03% sulfur, 0.035% phosphorus, 0.15% silicon, 0.04% copper, and 0.3% nickel.
The mechanical properties of A423 GR1 heat exchanger tube are: tensile strength is 310MPa, yield strength is 170MPa, and elongation is 30%.

ASTM A423 Grade 1 Pipes Chemical Composition

Grade 1
Carbon, max	0.15
Manganese	0.55 max
Phosphorus	0.06-0.16
Sullur. max	0.060
Silicon	0.10 min
Copper	0.20-0.60
Chromium	0.24-1.31
Nickel	0.20-0.70
Molybdenum	….
Antimony	….

ASTM A423 Grade 1 Seamless Steel Tubes​​​​​​​ Mechanical Properties

	Grades 1
Tensile strength, min. ksi	60[415]
Yield strength, min, ksi [MPa]	37[255]
Elongation in 2 in. or 50 mm. min, %	25
For longitudinal strip tests a deduction for each 1/32 in.[0.6 mm] decrease in wall thickness below 5/16in. [8 mm] from the basic minimum elongation of the following percentage points shall be made	1.25 A
Hardness	170 HB

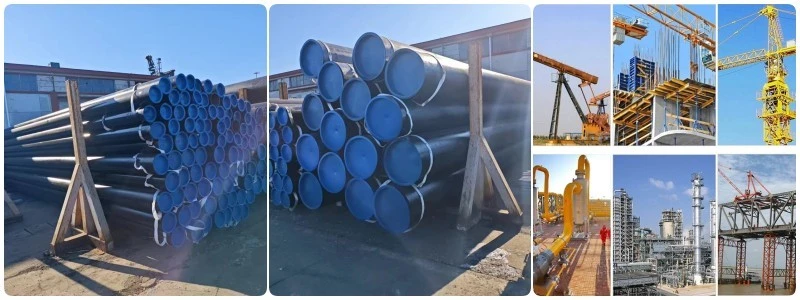

A423 Alloy Steel Boiler Tube

Gnee A423 seamless steel pipe delivery

GNEE products have been sold to hundreds of large and medium-sized cities in China. Also exported to India, Thailand, Vietnam, Saudi Arabia, Turkey, Brazil, Egypt and other countries. The company has passed ISO9001 quality management system certification, American Petroleum Institute API-5CT, API-5L certification, special equipment production license, BV certification and other third-party qualification certifications.

Gnee Factory environment

FAQ

Why choose Gnee?
With us, you will get the most competitive price, guaranteed quality, guaranteed delivery and after-sales service.

Are you a manufacturer?
Yes, we are a manufacturer and a well-known company with an early start in China's steel industry.

Can your products be customized?
Yes, we can produce and process according to your requirements.

Hot Tags: astm a423 grade 1 low-alloy steel tubes, China astm a423 grade 1 low-alloy steel tubes manufacturers, suppliers, factory, Alloy 20 Pipe
