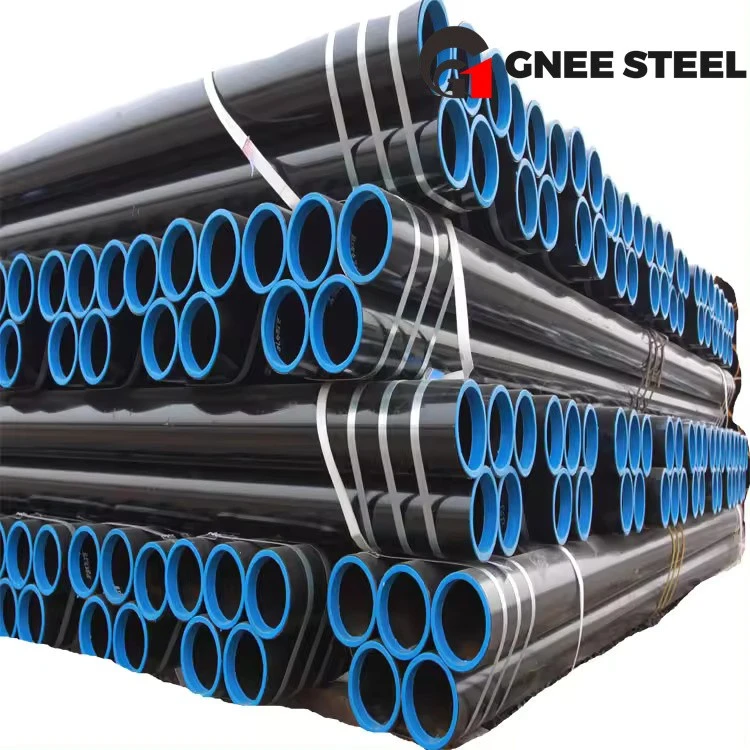

API 5L X65 Electric Fusion Welded Pipe

API 5L X65 line pipe is used for sour service and is designed to be the most economical and safest way to transport oil and gas.
Send Inquiry
Chat Now
Product Introduction

API 5L X65 line pipes are manufactured using high-quality raw materials from reliable and trustworthy suppliers in the industry. These products undergo various heat treatments and testing procedures to verify that they meet the specified characteristics.
API 5L X65 ERW pipes are carbon steel pipes with a very high yield strength of 450 MPa minimum and are therefore also known as L450 pipes. API 5L X65 welded pipes have the ability to withstand and resist hydrogen sulfide stress-related corrosion cracking, and are suitable for sour conditions and high pressure applications.
API 5L X65 straight seam electric resistance welded pipes use hot-rolled coils as raw materials, and the wall thickness can be uniformly controlled at about ±0.2mm. It has the advantages of high production efficiency and low cost and can withstand high pressure. Therefore, API 5L X65 high-frequency electric resistance welded pipes are suitable for conveying gas, water, oil and other liquefied media.

Take ActionContact Us: sales@gneetube.com


API 5L X65 Carbon Steel ERW Pipe Product specification

API 5L X65 Pipe Line Chemical Composition Chart

Grade Chemical Composition
  C Si Mn P S V Nb Ti
API 5L X65 0.16 0.45 1.65 0.020 0.010 0.09 0.05 0.06

X65 Suffix Letter Meaning

Letter Delivery condition
ACC accelerated cooling
N Normalizing / Normalized formed or rolled
A Annealing
T Tempering
CR controlled rolling
NR Normalized Rolling
R As rolled
TMCP Thermo-mechanical control process
Q Quenching
M Thermomechanical rolled or formed
S Sour Services (with level PSL2 pipe for QS, NS, MS, eg API 5L X65 NS
SR stress-relief annealing

API 5L X65 ERW steel pipe

API 5L X65 resistance welded pipe

Advantages of Choosing GNEE
Gnee has 14 steel production lines, 10 processing equipment for processing, bending, painting, heat treatment, cutting, drilling, beveling, tempering, surface treatment, complete testing equipment and strong technical force. The annual production capacity is more than 60,000 tons.

Gnee Packaging and shipping

API 5L X65 electric fusion welded pipe
