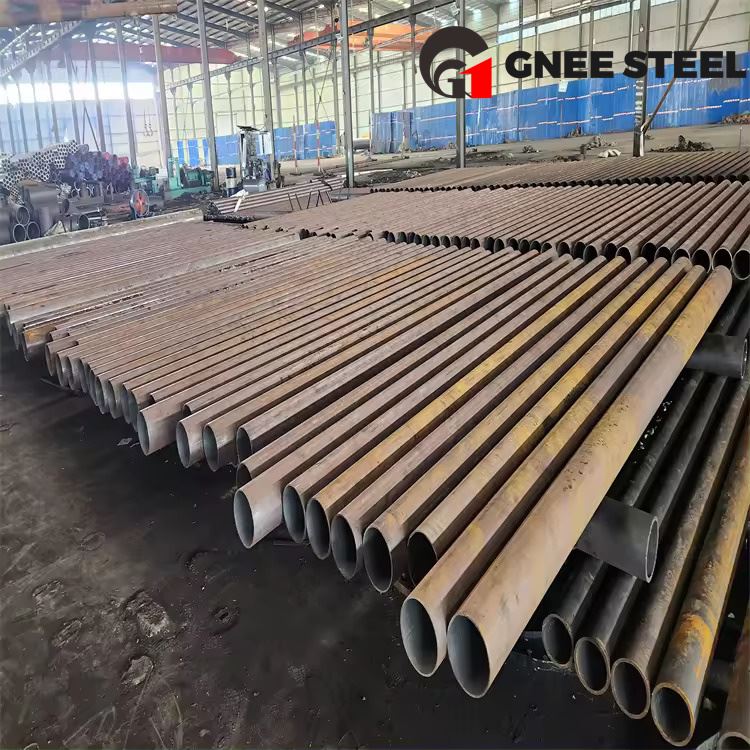

A333 GR. 10 Low-Temperature Pipe
ASTM A333 Grade 10 Seamless Pipe is a grade of the ASTM A333 standard. ASTM A333/A333M-16 Standard Specification for Seamless and Welded Steel Pipe for Cryogenic Service and Other Applications with Required Notch Toughness.
ASTM A333 grade 10 alloy steel pipe is suitable for seamless steel pipes of -45~-195~C low temperature pressure vessel pipes and low temperature heat exchanger pipes. Therefore, ASTM A333 grade 10 cryogenic pipelines are very suitable for transportation in the petroleum industry in cold areas.
The ASTM A333 Class 10 cryogenic seamless pipe test procedure was developed with harsh field conditions in mind. All of our ASTM A333 Grade 10 carbon alloy tubing is tested to internationally recognized standards or our own more stringent in-house testing procedures.
| Metal Temperature (A , B) | Minimum Holding Time, h/in. [min/mm] of Thickness |
|
| Grades 10 | ||
| °F | °C | |
| 1100 | 600 | 1 [2.4] |
| 1050 | 565 | 2 [4.7] |
| 1000 | 540 | 3 [7.1] |
Chemical Composition(%) & Physical Properties of ASTM A333 Grade 10 Steel Pipe
ASTM A333 Grade 10 Steel Pipe Chemical Composition(%)
| Steel Grade | Chemical Composition(%) | ||||||||||||
| C | Mn | P | S | Si | Ni | Cr | Cu | Al | V | Nb | Mo | ||
| Grade 10 | ≤0.20 | 1.15-1.50 | ≤0.035 | ≤0.015 | 0.10-0.35 | ≤0.25 | ≤0.15 | ≤0.15 | ≤0.06 | ≤0.12 | ≤0.05 | ≤0.05 | |
When Grades 10 are ordered under this specification, supplying an alloy grade that specifically re- quires the addition of any element other than those listed for the ordered grade in Table 1 is not permitted. However, the addition of elements required for the deoxidation of the steel is permitted.
Product Analysis
At the request of the purchaser, an analysis of one billet or two samples of flat-rolled stock from each heat or of two pipes from each lot shall be made by the manufacturer. A lot of pipe shall consist of the following:
| NPS Designator | Length of Pipe in Lot |
| Under 2 | 400 or fraction thereof |
| 2 to 6 | 200 or fraction thereof |
| Over 6 | 100 or fraction thereof |
Mechanical Properties
Tensile Requirements
| / | Grade 10 | |
| / | Ksi | Mpa |
| Tensile strength, min | 80 | 550 |
| Yield strength, min | 65 | 450 |
A333 GR. 10 Low-Temperature Pipe
Why choose us
gnee has 14 steel production lines, 10 processing equipment for processing, bending, painting, heat treatment, cutting, drilling, beveling, tempering, surface treatment, complete testing equipment and strong technical force. The annual production capacity is more than 60,000 tons.
