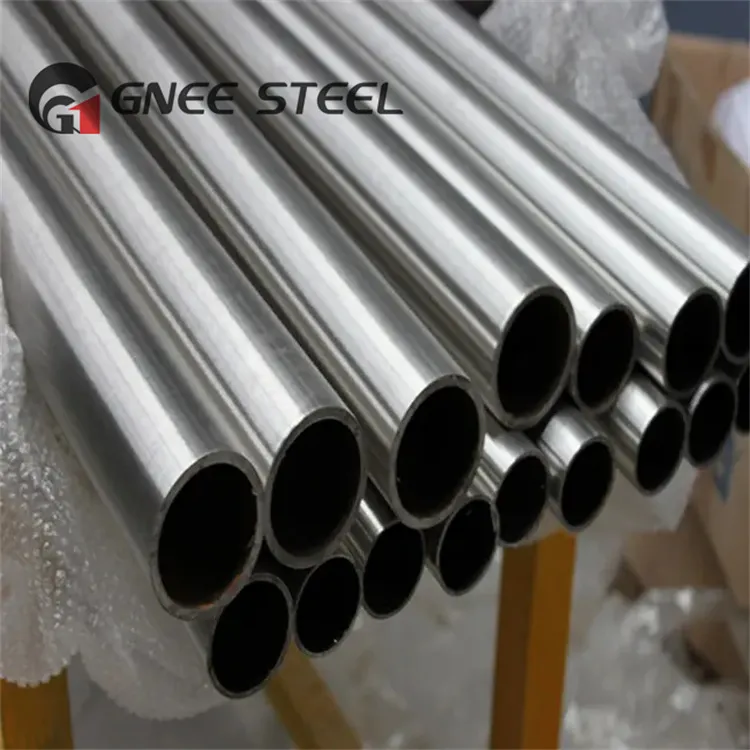

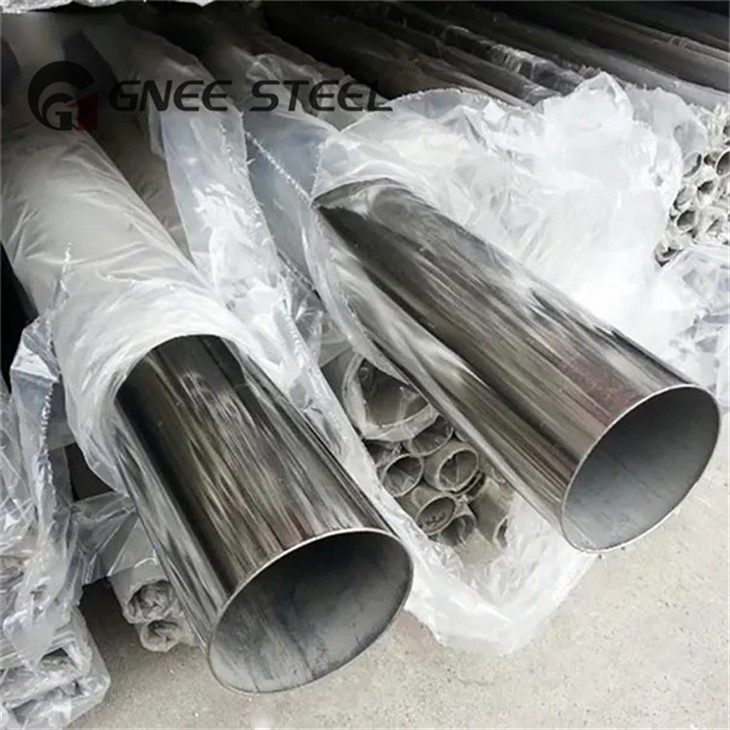

Duplex DIN 1.4462 Stainless Steel Pipe
gnee pipe team
1.4462 duplex stainless steel pipe is a German-grade duplex stainless steel composed of 21% chromium, 2.5% molybdenum and 4.5% nickel-nitrogen alloy. It has high strength, good impact toughness and good overall and local stress corrosion resistance. The yield strength of S31803 duplex stainless steel pipe is twice that of austenitic stainless steel. This alloy is particularly suitable for use in the -50°F/+600°F temperature range. This alloy may also be considered for applications outside this temperature range, but there are some limitations, especially when applied to welded structures.
The chemical composition of DIN1.4462 stainless steel round pipe is: Chromium (Cr): 24.0-26.0%, Nickel (Ni): 6.0-8.0%, Molybdenum (Mo): 3.0-5.0%, Copper (Cu): 0.5% maximum, Iron (Fe): balance. The higher the C content, the higher the hardness of DIN1.4462 steel pipe, but the plasticity and toughness decrease, and brittle fracture is prone to occur.
Duplex Steel DIN 1.4462 Pipes Specifications
| Specifications | ASTM A 790 ASME SA 790 |
| Dimensions | ASTM, ASME and API |
| Size | 1/2″NB TO 12 "NB IN |
| Schedule | SCH20, SCH30, SCH40, STD, SCH80 |
| Type | Seamless / ERW / Welded / Fabricated |
| Form | Round, Hydraulic Etc |
| Length | Single Random, Double Random & Cut Length. |
| End | Plain End, Beveled End, Treaded |
DIN 1.4462 Pipes Mechanical Properties
| Grade | DIN 1.4462 | |
|---|---|---|
| Density | 7.8 g/cm3 | |
| Melting Point | 1350 °C (2460 °F) | |
| Yield Strength (0.2%Offset) | Psi – 80000 , MPa – 550 | |
| Tensile Strength | Psi – 116000 , MPa – 800 | |
| Elongation | 15 % | |
Duplex Steel DIN 1.4462 Cold Drawn Pipes
Principle of heat treatment:
It uses the phase transformation law and grain growth law of DIN1.4462 steel pipe to change the organizational structure and performance of DIN1.4462 seamless pipe by controlling parameters such as temperature, time and cooling rate to achieve the purpose of improving its performance. . The welding process will have an important impact on the performance of DIN1.4462, such as joint strength and corrosion resistance.
Gnee Company is a professional manufacturer and service provider of various special seamless steel pipes, specializing in the production of fluid pipes, boiler pipes, alloy structural pipes, automobile pipes, marine pipes, etc. We have advanced production equipment, sufficient inventory, and many partners.
Gnee Factory environment
