API 5CT P110 is a high-strength steel grade for oil and gas wells, manufactured using the quenching and tempering (Q&T) process with a minimum yield strength of 110,000 psi (758 MPa). Designed for deep, ultra-deep, and high-pressure environments, it provides superior mechanical load-bearing capacity and collapse resistance to support the massive weight of long casing strings.
While it is a "workhorse" for sweet (non-sour) service, its high hardness and lack of a maximum hardness limit make it highly susceptible to brittle failure in environments containing Hydrogen Sulfide (H2S); therefore, it is not suitable for sour service applications.
The choice of connection for P110 depends entirely on the well depth, pressure, and environmental conditions. Because P110 is a high-strength grade used in challenging environments, the connection must be able to match the mechanical performance of the pipe body.
Complete your string in one place. Get a bundle discount for P110 casing, tubing, and matching couplings.
API BTC (Buttress Threaded and Coupled)
BTC is the most common "standard" connection for P110 casing.
Why BTC? Unlike STC or LTC threads, the trapezoidal shape of the Buttress thread provides much higher tensile strength (pull-out resistance). Since P110 is often used in deep wells where the casing string is very heavy, BTC is required to support that weight.
Best for: Deep vertical wells with high axial loads but moderate pressure.
Limitation: It is not "gas-tight." It relies on thread compound (dope) to seal.
Premium Connections (Special Threads)
For many P110 applications, standard API BTC is insufficient. Premium connections (such as VAM®, TenarisHydril, or proprietary "Gas-Tight" threads) are frequently used.
Why Premium?
Metal-to-Metal Seal: Premium connections provide a 100% gas-tight seal, which is necessary for high-pressure gas wells.
High Torque: In horizontal or shale wells (where fracking occurs), the pipe must be rotated. Premium threads can handle the high torque required for these operations.
Flush/Semi-Flush: If the wellbore is narrow (slim-hole), premium connections offer a slimmer profile than standard BTC couplings.
Best for: High-pressure gas wells, horizontal/lateral sections, offshore drilling, and thermal (SAGD) wells.
What about STC and LTC?
STC/LTC are rarely used for P110. These threads are more common for lower grades like J55 or K55. Using STC/LTC on a P110 pipe creates a "weak link," as the connection would likely fail long before the pipe body reaches its yield limit.
Table for Selection
| Factor | Use API BTC | Use Premium Connections |
| Well Type | Deep Vertical Oil Wells | High-Pressure Gas / Horizontal Wells |
| Sealing Requirement | Liquid Tight (Oil/Water) | Gas Tight (Methane/Gas) |
| Mechanical Stress | Mostly Tension (Weight) | Tension + Torque + Bending |
| Cost | Cost-effective / Standard | Expensive / High Performance |

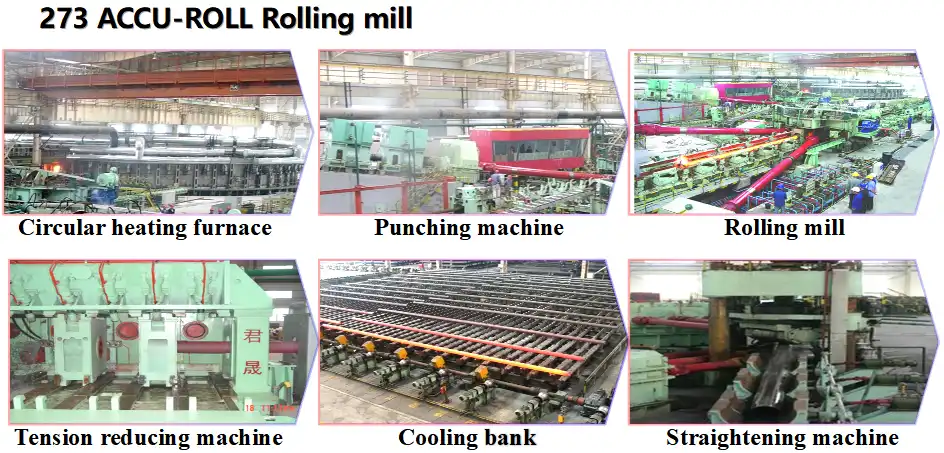

GNEE API 5CT P110 OCTG Process Line

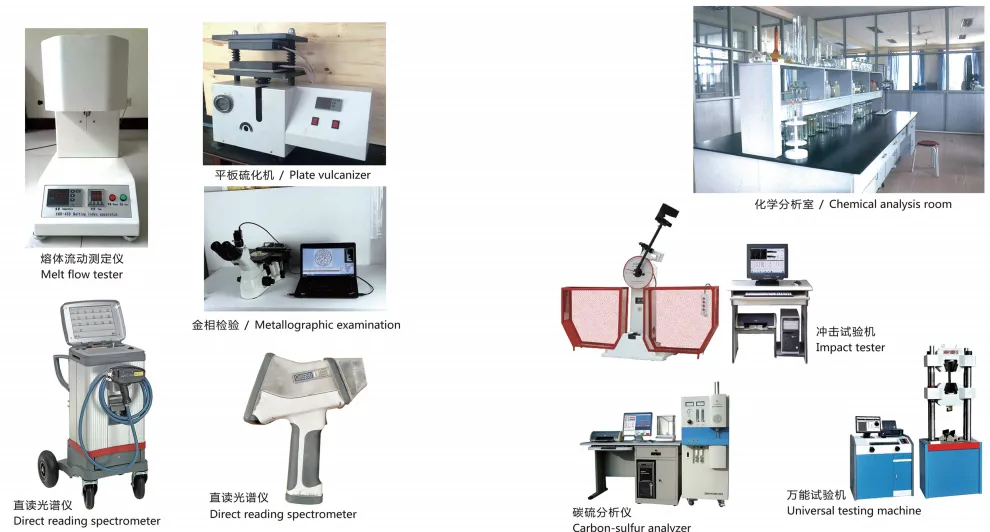

GNEE API 5CT P110 Oil well casing pipe test equipments
GNEE API 5CT P110 Casing and Tubing certificate
FAQ
What is P110 casing specification
API 5CT P110 is a high-strength casing specification designed for deep and high-pressure wells. Key specifications include:
Yield Strength: 110,000 – 140,000 psi (758 – 965 MPa).
Tensile Strength: Minimum 125,000 psi (862 MPa).
Heat Treatment: Mandatory Quenched and Tempered (Q&T) for superior toughness.
Application: Ideal for deep, heavy pipe strings in non-sour wells; it is not resistant to H2S (Sour Service).
Color Code: Identified by a white band on the pipe body and coupling.
What are the different types of casing threads?
Casing threads are generally divided into two categories: API Standard Connections and Premium Connections. Here is a simple breakdown:
1. API Standard Connections (Common & Cost-effective)
STC (Short Threaded and Coupled): An 8-round thread used for shallow, low-pressure wells. It is the most economical but has the lowest strength.
LTC (Long Threaded and Coupled): Also an 8-round thread but longer than STC. It offers better tension strength and is widely used for mid-range depth wells.
BTC (Buttress Threaded and Coupled): Features a trapezoidal (square-ish) thread shape. It provides high tensile strength and is the standard choice for deep wells and heavy casing strings.
2. Premium Connections (High Performance)
Metal-to-Metal Seal: Unlike API threads that rely on "thread dope" to seal, premium connections use a metal seal for 100% gas-tight integrity.
Features: Designed for extreme conditions, such as high-pressure gas wells, horizontal drilling (high torque), and offshore projects.
Examples: VAM® series, TenarisHydril, and various proprietary "Special Threads" from top-tier mills.
