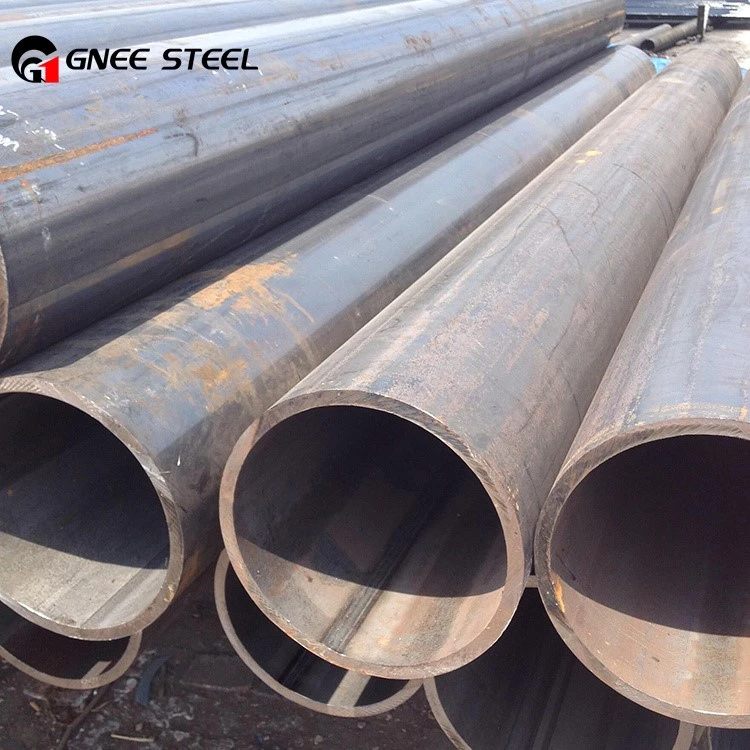

LSAW Welded Steel Pipe
Longitudinal submerged arc welded steel pipes are made by double-sided automatic submerged arc welding or single-sided welding. They are used for the transportation of general low-pressure fluids such as water, gas, air, and steam.
The characteristics of the submerged arc welding process are the electrothermal effect of the welding wire and the hot melting of the filler welding steel plate. Submerged arc welded straight seam steel pipes have intermittent production devices with up to 15 processes. High-frequency straight seam steel pipes have few production specifications and thin production thickness. Submerged arc welded straight seam steel pipes can be produced in any specification range from 325 to more than 1600 mm, and the thickness is within 80 mm.
Characteristics of LSAW Welded Steel tube
High efficiency: The manufacturing speed of longitudinal submerged arc welded steel pipes is relatively fast, which greatly improves production efficiency.
High-quality products: The welding quality of straight seam submerged arc welded steel pipes is stable and reliable, and has good corrosion resistance.
Uses of straight seam submerged arc welded steel pipes
1. Oil and gas transmission pipelines: Submerged arc straight seam welded steel pipes are widely used in transmission pipelines in the oil and natural gas industry and have the characteristics of strong pressure bearing capacity and good anti-corrosion capabilities.
2. Pipes for building structures: As the carrier of building structures, longitudinal submerged arc welded steel pipes play important roles such as stairs, bridges, and building frames.
3. Hydraulic support pipes: LSAW Welded Pipe are used as hydraulic support pipes in industries such as oil wells and coal mines and have pressure resistance and corrosion resistance.
Chemical Composition& Mechanical Properties
|
Standard |
Grade |
Chemical Composition (max)% |
Mechanical Properties (min) |
|||||
|
C |
Mn |
Si |
S |
P |
Yield Strength |
Tensile Strength |
||
|
(Mpa) |
(Mpa) |
|||||||
|
GB/T700-2006 |
A |
0.22 |
1.4 |
0.35 |
0.05 |
0.045 |
235 |
370 |
|
B |
0.2 |
1.4 |
0.35 |
0.045 |
0.045 |
235 |
370 |
|
|
C |
0.17 |
1.4 |
0.35 |
0.04 |
0.04 |
235 |
370 |
|
|
D |
0.17 |
1.4 |
0.35 |
0.035 |
0.035 |
235 |
370 |
|
|
GB/T1591-2009 |
A |
0.2 |
1.7 |
0.5 |
0.035 |
0.035 |
345 |
470 |
|
B |
0.2 |
1.7 |
0.5 |
0.03 |
0.03 |
345 |
470 |
|
|
C |
0.2 |
1.7 |
0.5 |
0.03 |
0.03 |
345 |
470 |
|
DSAW Steel Pipe
SAW Steel Pipe (Longitudinally Submerged Arc Welding Pipe) , DSAW Steel Pipe,Straight Seam Submerged Arc Welded Steel Pipe
Outside Diameter：Φ508mm- 1118mm (20"- 44")
Wall Thickness: 6.0-25.4mm 1/4"-1"
Quality Standards: API,DNV,ISO,DEP,EN,ASTM,DIN,BS,JIS,GB,CSA
Length: 9-12.3m (30'- 40')
Grades: API 5L A-X90,GB/T9711 L190-L625
|
Types |
Standard |
|||||
|
SY/T5040-2000 |
SY/T5037-2000 |
SY/T9711.1-1977 |
ASTM A252 |
AWWA C200-97 |
API 5L PSL1 |
|
|
Tube end OD deviation |
±0.5%D |
±0.5%D |
-0.79mm +2.38mm |
<±0.1%T |
<±0.1%T |
±1.6mm |
|
Wall thickness |
±10.0%T |
D<508mm, ±12.5%T |
-8%T +19.5%T |
<-12.5%T |
-8%T +19.5%T |
5.0mm |
|
D>508mm, ±10.0%T |
T≥15.0mm, ±1.5mm |
|||||
Gnee Factory Environment
FAQ
1.Q.How do we trust your company?
A. We specialist in steel business for many years, authenticated by SGS,welcome to visit our factory.
2.Q.Can your products be customized?
A.Yes, we can produce and process according to your requirements.
3.Q.Do you have a quality control system?
A.Yes, we have our own quality control laboratory. Third party testing service is also available.
