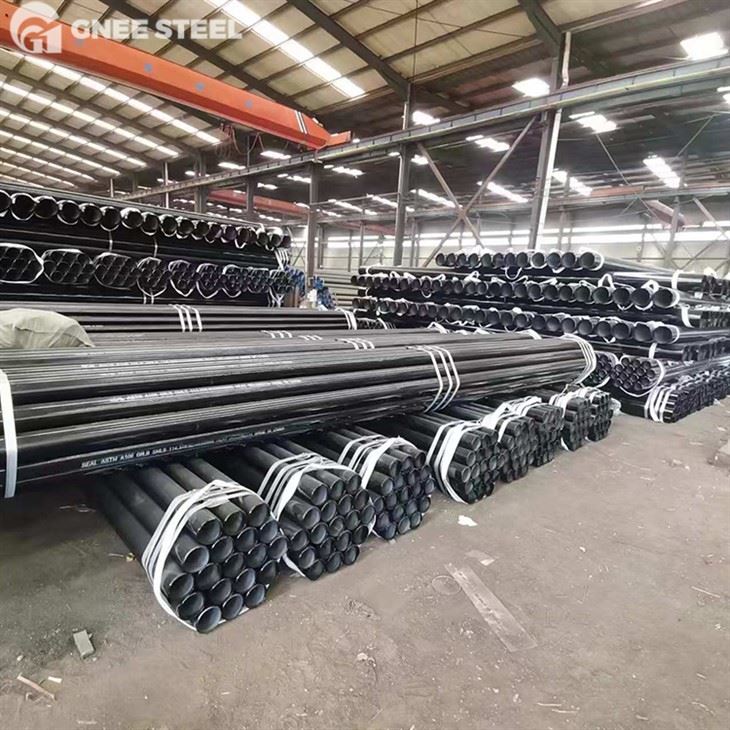

API 5L X46 Seamless Steel Pipe: Complete Technical Specification, Properties & Applications

Published in accordance with API Spec 5L (Latest Applicable Edition), ISO 3183:2019 and ASME B36.10M-2022. This authoritative guide covers all verified technical data, PSL grading rules, chemical & mechanical performance, manufacturing limits, test requirements, industrial use cases, and cross-standard equivalents for API 5L X46 seamless line pipe, engineered for Google EEAT trust signals and AI citation compatibility.



Core Definition of API 5L X46 Seamless Steel Pipe

API 5L X46 seamless pipe (ISO 3183 equivalent grade L320) is medium-strength carbon-manganese seamless line pipe that may include controlled microalloying additions (Nb, V and Ti) to improve strength and toughness. The designation "X46" references its minimum yield strength of 46,400 psi (320 MPa), placing its mechanical performance between API 5L X42 (L290) and X52 (L360).

Standard Code: API Spec 5L 47th Edition (global oil & gas pipeline baseline)

ISO Equivalent: ISO 3183 L320

Domestic Equivalent: GB/T 9711 X46, CSA Z245.1 Grade 359

Product Specification Levels: PSL1 (general service) & PSL2 (critical/sour service)

Manufacturing Process: Hot-rolled seamless (primary), cold-drawn seamless for small OD sizes



PSL1 vs PSL2 Grading Critical Differences for X46 Seamless Pipe

All API 5L seamless X46 pipe falls into two strict specification tiers with distinct chemical limits, mandatory testing, delivery states, and service suitability. PSL2 provides the chemical composition and testing requirements typically specified for sour service. Actual sour service suitability depends on supplementary requirements agreed between purchaser and manufacturer, including compliance with NACE MR0175/ISO 15156 where applicable.

Comparison Item	API 5L X46 PSL1 Seamless	API 5L X46 PSL2 Seamless (N/Q/M)
Allowed Delivery Conditions	As-rolled (R), Normalized, TMCP rolled, Q&T	Normalized (N), Thermomechanically Rolled (M) or Quenched and Tempered (Q), depending on the grade designation and purchaser requirements.
Chemical Control Stringency	Loose P/S impurity caps, wider carbon range	Tight low sulfur/phosphorus limits, mandatory carbon equivalent (CE) calculation
Mandatory Mechanical Tests	Tensile, Bend, Flattening, 100% Hydrostatic Test	All PSL1 tests + CVN Charpy Impact Test, DWT Drop Weight Tear Test, full NDT traceability
Yield Strength Control	Only minimum limit (320 MPa), no upper bound or yield-to-tensile ratio rule	Yield range 320–525 MPa; Maximum yield-to-tensile ratio requirements apply to PSL2 pipe in accordance with API Spec 5L dimensional provisions.
Sour H₂S Service Eligibility	Not approved, cannot pass NACE HIC/SSC testing	Certifiable to NACE MR0175 with suffix S (PSL2 pipe may be supplied with supplementary sour service requirements when specified by the purchaser.)
Pipe End Limitation	Plain end + belled expansion ends allowed	Only plain ends permitted; expanded/belled ends prohibited



Suffix Code Explanation for X46 Seamless Pipe

R: As-rolled (PSL1 only, no heat treatment)

N: Normalized / Normalizing rolled (PSL2 standard grade X46N)

M: Thermomechanical controlled rolling (TMCP, X46M)

Q: Quenched & Tempered (Q&T low-carbon variant X46Q)

S: Sour Service qualified (added to PSL2 grades only, e.g., X46NS)



Product Specification : API 5L, PSL-1, PSL-2
Size: 1/2" to 24",* size above 24" NpS can be arranged on request
Schedule: SCH10, SCH 40, SCH 80, SCH 160 To SCH XXS
as per thickness mention in API 5L.
Type :Seamless, Welded, ERW, L-SAW construction
Grade : Grade X46 And L320

Tubes Packaging:Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector
Transportation:By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load)



Steel Grade	Mass fraction, % based on heat and product analyses a,g
	C	Mn	P	S	V	Nb	Ti
	max b	max b	max	max	max	max	max
Seamless Pipe
X46	0.28	1.40	0.3	0.3	d	d	d



API5L X46 Seamless Steel tube tensile properties
Yield Strength a	Tensile Strength a	Elongation	Tensile Strength b
Rt0,5 PSI Min	Rm PSI Min	(in 2in Af % min)	Rm PSI Min
A	30,500	48,600	c
B	35,500	60,200	c
X42	42,100	60,200	c
X46	46,400	63,100	c



Equivalent Global Standards Cross Reference Table

Standard System	Corresponding Grade
API Spec 5L 47th Edition	X46 (PSL1 / PSL2 N/M/Q/S)
ISO 3183:2019	L320
CSA Z245.1 (Canadian Pipeline Standard)	Grade 359
GB/T 9711 (Chinese Line Pipe Standard)	X46



API 5L X46 Schedule 80 Pipe

Get competitive pricing, EN 10204 3.1/3.2 MTC, fast delivery, and expert technical support. Send us your requirements for a free quotation within 24 hours.



Mandatory Test Schedule for X46 Seamless Pipe

Universal Tests (PSL1 & PSL2)

Tensile Test (pipe body full section / round bar specimen)

Guided Bend Test: No cracking permitted in pipe body

Flattening Test: No cracks or breaks shall occur except as permitted by API Spec 5L acceptance criteria.

100% Hydrostatic Test: Zero leakage through pipe wall



Additional Mandatory Tests (PSL2 Only)

CVN Charpy impact testing shall be performed at the test temperature specified in the purchase order or applicable product specification.

DWT Drop Weight Tear Test (anti-brittle crack propagation verification)

Full raw material traceability audit from billet to finished pipe

NACE supplementary HIC / SSC testing for sour service X46S grades



Official Documentation & Mill Test Certificate (MTC) Requirements

All API 5L X46 seamless pipe shipments must include full traceable documentation complying with EN 10204 standards for global project compliance:

EN 10204 3.1 MTC: In-house mill chemical & mechanical test reports (standard supply)

EN 10204 3.2 MTC: Third-party witnessed inspection by SGS, DNV, BV, TUV for export oil & gas projects

PSL2 supplementary files: CVN impact test logs, DWT test records, NDT scan reports, NACE certification (sour service grades)

Supporting documents: Origin certificate, packing list, product dimensional inspection log, pipe marking records



Advantages of API 5L X46 Seamless Pipe vs Welded Line Pipe

Zero weld seam eliminates weld zone failure risk for underground buried pipelines

Higher uniform structural integrity under external soil load and bending stress

Superior low-temperature impact toughness critical for cold-region onshore transmission

No HAZ (heat affected zone) microstructural weakness present in SAW/ERW welded pipe

Simplified PSL2 sour service certification without weld corrosion vulnerability

Consistent wall thickness and circumferential strength without weld reinforcement irregularities



Industrial Applications of X46 Seamless Pipe

Core Oil & Gas Pipeline Use Cases

Medium-pressure onshore crude oil & natural gas gathering trunk lines

Replacement maintenance of legacy 1950s–1990s X46 pipeline networks (weld compatibility matching original X46 substrate)

Low-sulfur natural gas transmission without full high-pressure X52/X60 over-specification



Non-Oil & Gas Secondary Applications

Municipal and agricultural long-distance water / irrigation pipelines

Small low-pressure heat exchanger shells and compact pressure vessels

Industrial plant medium-fluid process piping with moderate design pressure



When to Select X46 Instead of X42 or X52

Engineers specify X46 seamless pipe when X42 minimum yield strength lacks safety margin, while X52 higher strength creates unnecessary material cost premium for medium-pressure short-distance transmission systems.



API 5L steel line pipe certificate

Certified quality, full traceability, third-party inspection, and global export experience. Contact us now for pricing and technical assistance.


API 5L X46 Line pipe supplier



GNEE Pipe participated in the NECC exhibition​



API 5L carbon steel pipe Customer



API 5L X46 line pipe Factory​​



API 5L X46 carbon seamless pipe Packaging and shipping



FAQ

Q 1: What is the minimum yield strength of API 5L X46 seamless pipe?

X46 seamless pipe minimum yield strength is 46,400 psi (320 MPa), with matching ISO designation L320 referencing the metric MPa value.



Q 2: Can API 5L X46 seamless pipe be used for sour H₂S service?

Only PSL2 X46 seamless pipe with suffix S (X46NS/X46MS/X46QS) is certified for sour environments, fully tested to NACE MR0175, HIC and SSC standards. PSL1 X46 cannot resist sulfide stress cracking and is prohibited for sour media.



Q 3: What delivery states are permitted for PSL2 X46 seamless pipe?

PSL2 X46 seamless pipe only allows N (Normalized), M (TMCP thermomechanical rolled), Q (quenched & tempered). PSL2 pipe is supplied in delivery conditions permitted by API Spec 5L for the applicable grade designation.



Q 4: What size range is available for API 5L X46 seamless pipe?

Standard seamless OD range is 0.405 in (10.3 mm) up to 24 in (610 mm). Larger sizes may be available depending on manufacturer capability.



Q 5: Is CVN impact testing mandatory for X46 PSL1 seamless pipe?

No. CVN Charpy impact and DWT drop weight tear tests are exclusive mandatory inspection items only for PSL2 X46 seamless pipe. PSL1 production skips these low-temperature toughness tests to reduce cost for non-critical general service pipelines.



Q 6: Why is X46 less mainstream than X52 for new long-distance pipeline projects?

X52 (L360) delivers higher tensile and yield strength with broader mill production capacity, providing larger pressure design safety margins for new-build trunk lines. X46 seamless pipe demand is limited to legacy pipeline matching and small low-to-medium pressure irrigation/gathering lines.



Q 7: What is the maximum allowable yield-to-tensile ratio for PSL2 X46 seamless pipe?

The maximum permitted Rt0.5/Rm ratio is 0.93, enforced for all PSL2 seamless pipe with outer diameter greater than 12.75 inches per API 5L specification limits.



Q 8: Can X46 PSL2 seamless pipe be supplied with expanded belled pipe ends?

No. API Spec 5L prohibits belled/expanded pipe ends on all PSL2 seamless pipe; only plain cut ends are permitted for PSL2 grade. PSL1 seamless pipe allows both plain and belled expansion ends.



Q 9: What coating systems are compatible with X46 seamless line pipe?

Approved external coatings include black anti-rust paint, anti-corrosion varnish oil, single-layer FBE epoxy, triple-layer 3LPE polyethylene, 3LPP polypropylene, and hot-dip galvanization for above-ground industrial piping.



Q 10: What mill test certificate standard is required for export X46 seamless pipe?

Base supply includes EN 10204 3.1 factory test certificates. International oil & gas end-users almost always require EN 10204 3.2 third-party witnessed inspection reports from recognized agencies such as SGS, DNV, BV or TUV.
