API 5CT L80-13Cr Casing Pipe

What is API 5CT L80-13Cr Casing Pipe?

API 5CT L80-13Cr is a high-performance, corrosion-resistant alloy (CRA) casing pipe belonging to Group 2 of the API 5CT specification. It is a martensitic stainless steel containing approximately 12% to 14% Chromium.

Unlike standard L80-1 (carbon steel), L80-13Cr is specifically engineered for wells with high Carbon Dioxide ( CO₂) concentrations. It provides excellent resistance to CO₂ -induced pitting and general corrosion, significantly extending the lifespan of the well string in acidic environments where carbon steel would fail rapidly.

Defeat CO₂ Corrosion Once and For All! Request a Professional Solution for API 5CT L80-13Cr Casing Today.

API 5CT L80-13Cr oilfield casing pipe Specification

Standard: API Spec 5CT (Latest Edition)

Grade: L80 (Controlled hardness grade)

Type: 13Cr (Martensitic Stainless Steel)

Manufacturing: Seamless (SML) only. 13Cr cannot be welded for casing applications.

Heat Treatment: Quenched and Tempered (Q&T) to ensure a refined martensitic structure and controlled hardness.

Hardness Limit: Strictly controlled to ≤ 23 HRC to prevent Sulfide Stress Cracking (SSC).

API 5CT L80-13Cr steel oil casing pipe Color Code

API uses a specific color banding system to prevent field installation errors:

Pipe Body: One Red Band + One Brown Band + One Yellow Band.

Couplings: The entire coupling is painted Red with a Brown stripe and a Yellow stripe.

L80-13Cr OCTG Casing Pipe Chemical Composition and Mechanical Properties

Chemical Composition (Mass Fraction, %)

The high Chromium content is the "secret" to its corrosion resistance.

Mechanical Properties (Data-Driven)

L80-13Cr casing Pipe Size Table (Common Sizes)

13Cr material is expensive, so it is often used for the production string (tubing) or the bottom section of a casing string.

L80-13Cr Oil well casing pipe Key Features

Excellent CO₂ Resistance: Forms a passive Chromium Oxide layer that prevents mass-loss corrosion.

Strict Hardness Control: The 23 HRC limit ensures the pipe isn't too brittle.

High Strength-to-Weight Ratio: Allows for thinner walls than J55/K55 while maintaining 80ksi strength.

Premium Threading Compatibility: Often paired with Premium Connections (Gas-Tight) because 13Cr is frequently used for high-pressure gas production.

L80-13Cr OCTG Casing Pipe Application

L80-13Cr is the industry standard for:

CO₂ Rich Wells: Where CO₂ partial pressure exceeds 30 psi.

Wet Gas Wells: Where moisture and CO₂ form carbonic acid.

Offshore & Deepwater Wells: Where the cost of intervention is extremely high, requiring long-term material durability.

Geothermal Wells: Environments with high temperature and corrosive brine.

Note: It is NOT suitable for high H₂S (sour) environments or high-chloride environments at very high temperatures, as it may suffer from Stress Corrosion Cracking (SCC).

Inspection Requirements

Due to the critical nature of CRA materials, inspection is comprehensive:

Hardness Testing: 100% verification to ensure no spot exceeds 23 HRC.

Ultrasonic Testing (UT): Full-body inspection to detect internal inclusions or longitudinal/transverse defects.

Electromagnetic Inspection (EMI): To detect surface and near-surface imperfections.

Hydrostatic Test: Every joint is tested to pressures often exceeding 7,000+ psi to ensure seal integrity.

Visual Inspection: Specifically looking for surface "scratches" or "galling," as 13Cr is more prone to surface damage than carbon steel.

Drift Test: Using a 13Cr-compatible mandrel to ensure the internal clearance is unobstructed.

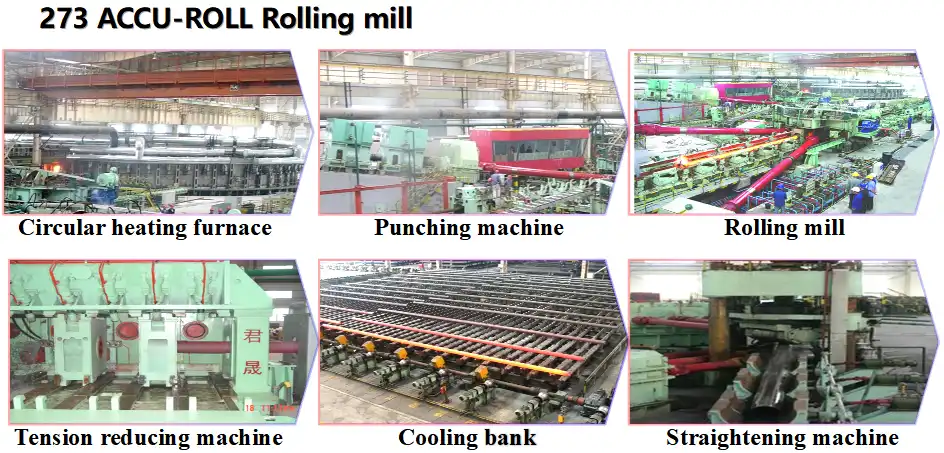

GNEE API L80-13Cr Casing Pipe process Line

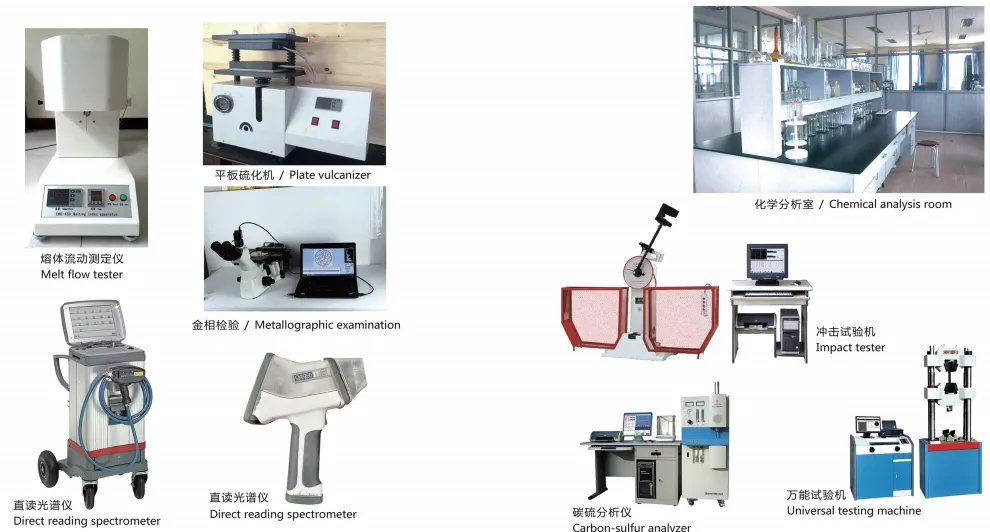

GNEE API 5CT L80-13Cr OCTG Pipe Test Equipments

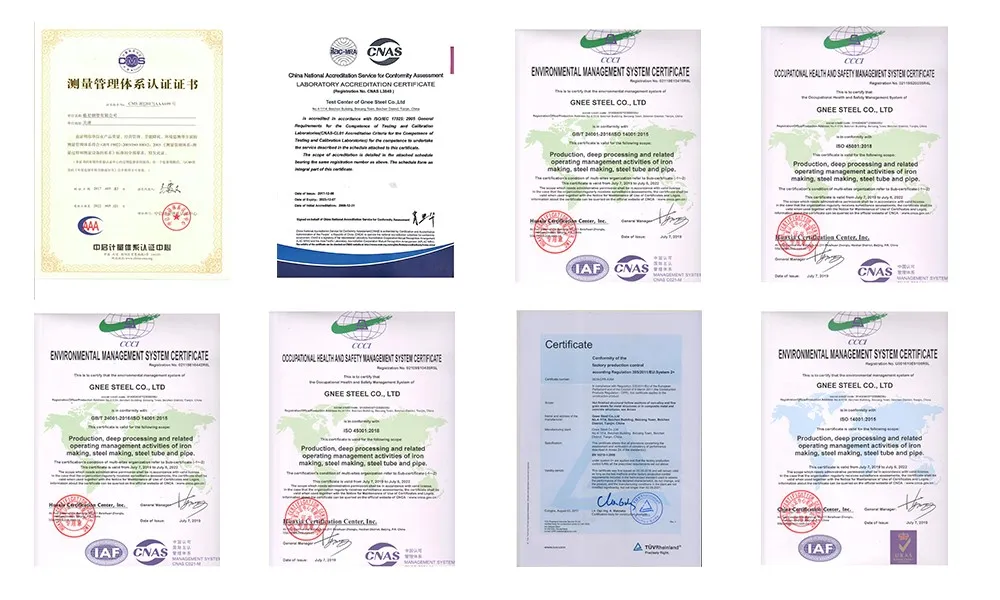

GNEE API 5CT L80-13Cr Oil Well Casing Pipe certificate

FAQ

What are the different types of L80?

Under the API 5CT specification, there are three main types of L80 grade casing and tubing, distinguished by their chemical composition and corrosion resistance:

L80-1 (Standard Carbon Steel):

Material: Low-alloy carbon steel.

Purpose: Specifically designed for Sour Service ( H₂S ). It has a controlled maximum hardness (≤23 HRC) to prevent Sulfide Stress Cracking.

L80-9Cr (9% Chromium):

Material: Alloy steel with 9% Chromium and 1% Molybdenum.

Purpose: Provides better corrosion resistance than L80-1. It is used in wells with moderate CO₂ and high temperatures where standard carbon steel would fail.

L80-13Cr (13% Chromium):

Material: Martensitic Stainless Steel (13% Chromium).

Purpose: The "Industry Standard" for High CO₂ environments. It offers excellent resistance to pitting and weight-loss corrosion in sweet gas wells but is expensive.

What is the difference between K55 and L80?

The main differences between K55 and L80 are strength, hardness, and the environments they are designed for:

Strength:

L80 is much stronger, with a minimum yield strength of 80,000 psi.

K55 is a lower-grade material with a minimum yield strength of 55,000 psi.

Sour Service (H₂S Resistance):

L80 is a "controlled hardness" grade specifically designed for Sour Service (H₂S environments).

K55 is for "Sweet Service" only and will fail (crack) quickly if exposed to H₂S.

Hardness Control:

L80 has a strict maximum hardness limit of 23 HRC to prevent brittle cracking.

K55 has no mandatory API hardness limit.

Heat Treatment:

L80 must be Quenched and Tempered (Q&T) to achieve its properties.

K55 can be delivered "as-rolled" or normalized, requiring less processing.
