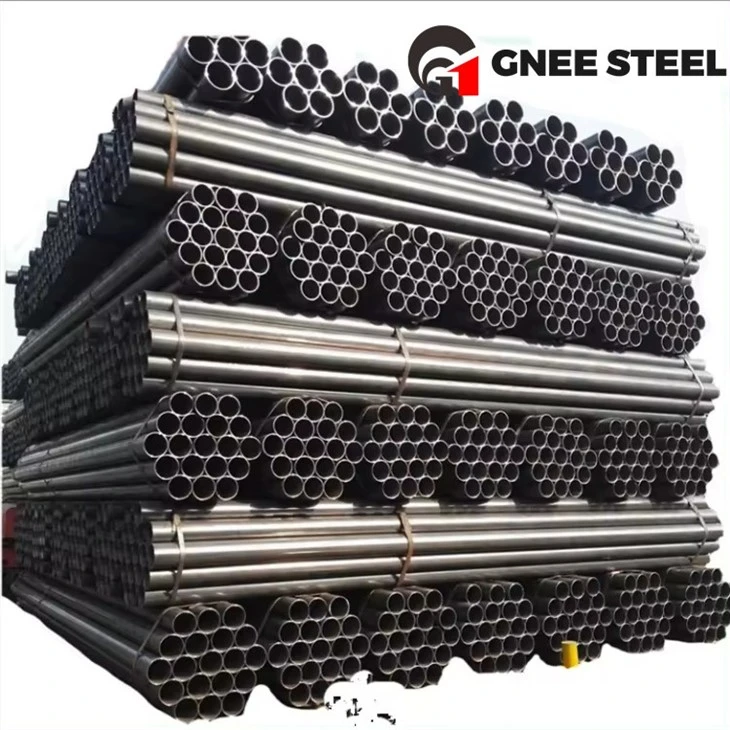

A333 GR.4 Low temperature carbon steel pipe
gnee has 14 steel production lines, 10 processing equipment for processing, bending, painting, heat treatment, cutting, drilling, beveling, tempering, surface treatment, complete testing equipment and strong technical force. The annual production capacity is more than 60,000 tons.
A333 GR.4 low temperature seamless steel pipe is made of carbon and other elements silicon, aluminum, phosphorus and sulfur. The tensile strength is 485MPa and the yield strength is 310MPa.
It is worth noting that the carbon content of A333 GR.4 carbon alloy steel pipe is relatively shallow, usually less than 0.5%. Therefore, compared with high carbon pipe steel, A333 GR.4 seamless pipe has excellent weldability and ductility at extreme temperatures. A333 GR.4 alloy pipe is widely used in pipelines transporting fluids due to its excellent low temperature resistance and corrosion resistance, such as pipelines transporting oil, natural gas, natural gas, water and some solid materials.
Take ActionContact Us: sales@gneetube.com
A333 GR.4 alloy cryogenic tube description
| Item | Gr.4 low temperature steel pipe |
| Standard | ASTM A333,ASTM A334,JIS G3464,EB10216-4-2002 |
| Outside diameter | 8~2000mm |
| Wall thickness | SCH10-SCHXXS (1~120mm) |
| Length | 5.8m,6m,11.8m,12m,or as required |
| Surface | Anti corrosion,black painted,PE coated,Galvanized |
| Chemical composition |
C≤0.12,Si:0.08-0.37,,Mn:0.40-1.05,P≤0.025,S≤0.025,Ni:0.47-0.98,Cr:0.44-1.01, Cu:0.4-0.75,Al:0.04-0.30 |
| Packaging | Loose / Bundle / Wooden Pallet / Wooden box-a / Plastic Cloth Wraps / Plastic End Caps / Beveled Protector |
| Transportation | By Road - Truck / Train, By Sea - Break-bulk Conventional Vessel / FCL (Full Container Load) |
| Export to | Saudi Arabia,India,Dubai,Singapore,Indonesia,USA,UK,Korea,Viet Nam,Peru,Ukraine, South Africa ,South Korea,Canada,Saudi Arabia,e |
A333 Gr.4 Low temperature carbon steel pipe Chemical Compositions(%)
| Compositions | Data |
| Carbon(max.) | 0.12 |
| Manganese | 0.50-1.05 |
| Phosphorus(max.) | 0.025 |
| Sulfur(max.) | 0.025 |
| Silicon | 0.18-0.37 |
| Nickel | 3.18-3.82 |
| Chromium | 0.44-1.01 |
| Al | 0.04-0.30 |
A333 Gr.4 Alloy seamless pipe Mechanical properties
| Properties | Data |
| Yield strength(min) | 415 Mpa |
| Tensile strength(min) | 240 Mpa |
| Elongation(%, min) Y | 30 |
| Elongation(%, min) X | 16.5 |
A333 Gr.4 steel pipe Strike Temperature Condition
| The lowest temperature for strike test | |
| ℉ | ℃ |
| -150 | -100 |
A333 GR.4 Low temperature pipe
Gnee Company products
FAQ
Q: Can you send samples?
A: Of course, we can send samples to all over the world, our samples are free, but customers
need to bear the courier cost.
Q: What product information do I need to provide?
A: You need to provide grade, wall thickness, width and quantity you need to buy.
Q: What are the shipping ports?
A: You can choose other ports according to your needs.
