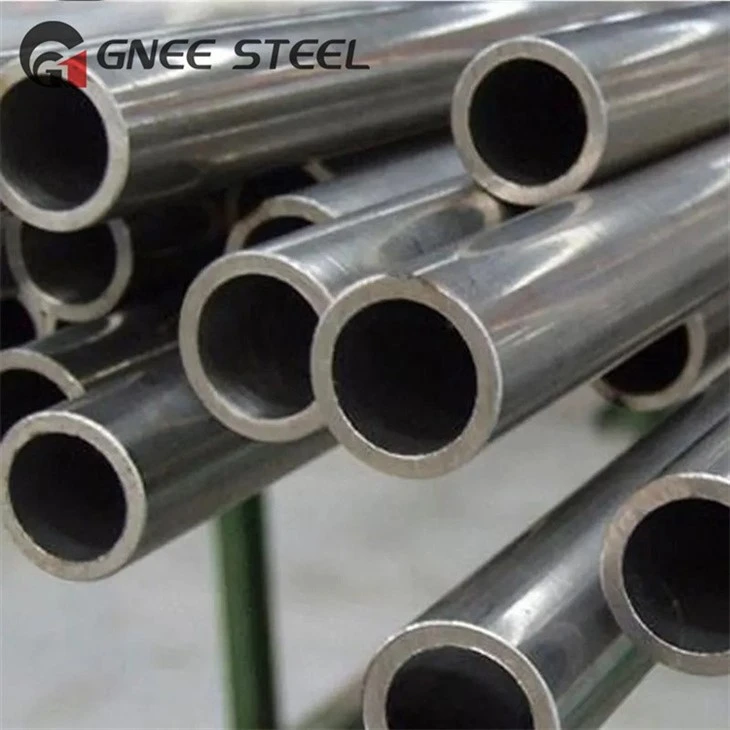

304 316 321 Stainless Steel Condenser Tube
gnee pipe team
What is a stainless steel condenser tube?
Stainless steel condensation tube is a type of pipe used in condensation applications, usually made of stainless steel material. Condensation is the process of cooling a gas or vapor and turning it into a liquid.
Commonly used stainless steel grades for condenser tubes include 304, 316 and 321. These stainless steel grades vary in corrosion resistance, temperature resistance and mechanical properties to meet different application needs.
304 stainless steel condenser tube has good corrosion resistance and processing performance, and is suitable for general condenser applications; 316 stainless steel tube contains higher nickel and molybdenum elements, has better corrosion resistance and high temperature stability, and is suitable for marine or water-containing applications. Chlorine environment. 321 stainless steel tube contains titanium, which has high temperature stability and resistance to intergranular corrosion. It is suitable for condensers in high temperature or corrosive environments.
Stainless steel condensing tubes are highly corrosion-resistant, maintaining their integrity and service life over time and are suitable for condenser applications where the tubes are exposed to water, moisture and potentially corrosive substances. Its corrosion resistance helps prevent rust and reduce maintenance costs, thereby increasing system reliability and efficiency.
Stainless Steel Condenser Tube Specification
| Specifications | ASTM A213, ASTM A249, ASTM A269 |
| Size Range | 6 mm OD to 219.1 mm OD |
| Outside Diameter | From 6mm~2500mm |
| Length | 1 Mtr Upto 32 Mtrs Long / U-Tube Length – 32 Mtrs U Tube Coil – 50 Mtrs |
| Thickness | 0.7 mm Thick To12.7 mm Thick |
| Form | Seamless, Welded, Hot Rolled, Cold Drawn |
| Shapes | Straight tube, Coil tubing |
| Ends | Plain end, Bevelled end |
| Grades | TP - 304,304L,316,316L,201 |
SS Condenser Furnace Tube
Stainless Steel Condenser Tube Specifications – Restricted Tolerance Controls
OD Tolerance: +0.005/-0 in.
Hardness: Maximum 80 HRB (Rockwell)
Wall Thickness: ±10%
Chemistry: Min. 2.5% Molybdenum
gnee company has an advanced inspection and testing center that can conduct various physical and chemical tests on steel pipes. It has successively obtained ISO9001, ISO14001, ISO45001 system certification, special equipment manufacturing license, API 5L certificate and API 2B certificate, CE certificate, safety production standardization secondary enterprise and other standard quality system certifications.
