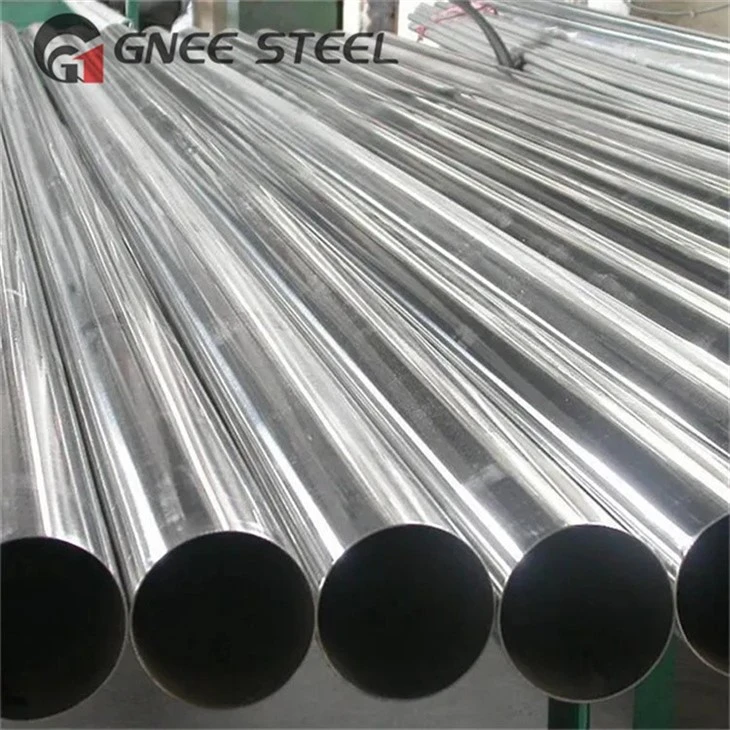

Stainless Steel 310H Pipes UNS S31009

gnee pipe team

S31009 steel pipe is an austenitic stainless steel with 19% nickel and high chromium elements (such as more than 25% chromium) added to the alloy, which gives it strong corrosion resistance and high temperature performance. Compared with other materials, S31009 stainless steel pipe not only has good general corrosion resistance and high temperature performance, but also has excellent oxidation resistance and thermal fatigue resistance.
310H stainless steel pipes are mainly used in the heat treatment industry and chemical industry, rollers, burner parts, oven linings, pipe hangers, conveyor belts, refractory supports, containers for hot concentrated acid or ammonia and sulfur dioxide, in the food processing industry with hot acetic acid Use with citric acid.

S31009 UNS Pipes Chemical Composition

Grade	UNS S31009
	min	max
C	0.04	0.10
Mn	–	2.0
Si	–	1.00
P	–	0.045
S	–	0.03
Cr	24.0	26.0
Mo	–	–
Ni	19.0	21.0

Mechanical properties of TP310H SS Seamless Pipes and Tubes

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell B (HR B) max	Brinell (HB) max
310H	515	205	40	95	217

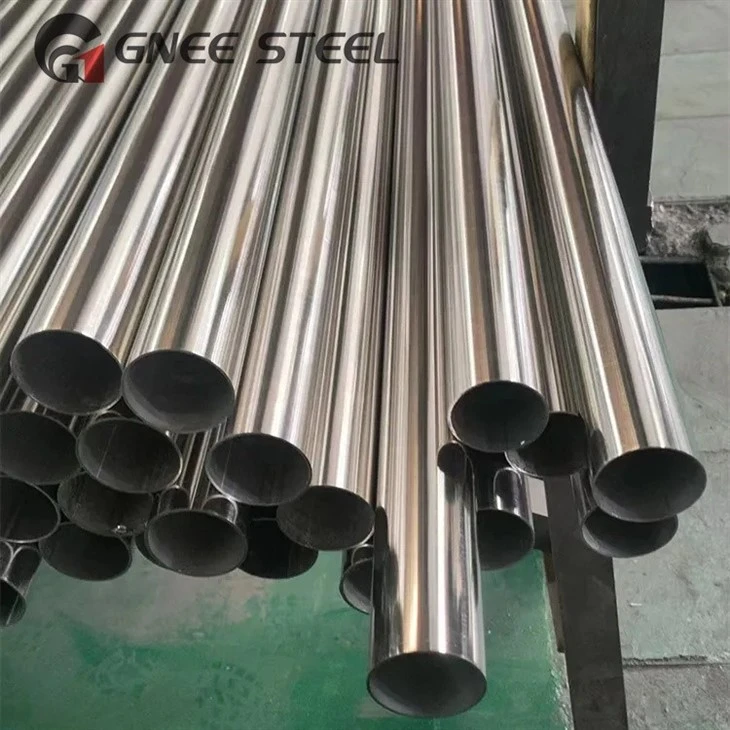

Stainless Steel UNS S31009 Pipes

Specifications for Stainless Steel 310H Pipe and Tube

STANDARD	WERKSTOFF NR.	UNS	JIS	AFNOR	BS	GOST	EN
SS 310H	-	S31009	-	-	-	-	-

Precautions
310H stainless steel heat-resistant steel pipe has good oxidation resistance in air at continuous operating temperatures up to 1040°C and 1150°C. Good resistance to thermal fatigue and cyclic heating. Widely used when encountering sulfur dioxide gas at high temperatures. Carbide precipitation in the 425-860°C range is not recommended if subsequent water corrosion resistance is required, but it generally performs well in temperature ranges above and below this.
It is prone to σ phase embrittlement in the temperature range of 650-900°C. Grade 310H steel pipe is typically used at temperatures starting from about 800 or 900°C, higher than the temperatures at which 304H and 321 are effective.



Gnee Company is a professional manufacturer and service provider of various special seamless steel pipes, specializing in the production of fluid pipes, boiler pipes, alloy structural pipes, automobile pipes, marine pipes, etc.
